Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 300 | ₹ 671.06000 | ₹ 2,01,318.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | DB | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Rated Operating Voltage | 12VDC | |
| Package Size Specs | Square/Rounded - 40.5mm L x 40.5mm H | |
| Horizontal Width Dimension | 19.50mm | |
| Ventilation Rate | 1.6 CFM (0.045m³/min) | |
| Airflow Static Pressure | 0.130 in H2O (32.4 Pa) | |
| Rotary Bearing Design | Ball | |

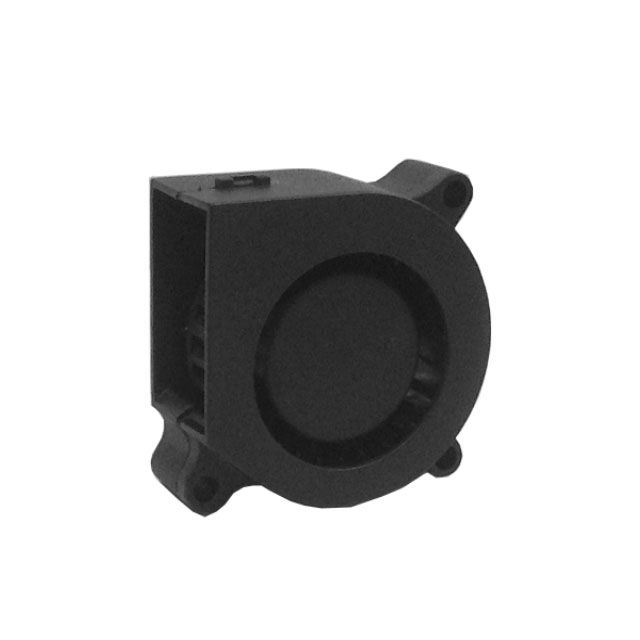

| Airflow Fan Category | Blower | |
| Key Product Highlights | Locked Rotor Protection | |
| Electrical Noise Level | 27.0dB(A) | |
| Wattage Power Level | 960 mW | |
| Revolutions Per Minute | 3500 RPM | |
| Circuit End Method | 2 Wire Leads | |
| Dust Water Resistance Rating | IP55 - Dust Protected, Water Resistant | |
| Ambient Temp Range | 14 ~ 158°F (-10 ~ 70°C) | |
| Certification Body | CE | |
| Product Weight Grams | - |
Description
Delivers airflow rated at 1.6 CFM (0.045m³/min) for optimal cooling efficiency. Complies with the criteria of entities acknowledged as CE. Equipped with a Ball type bearing for reliable mechanical rotation. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Facilitates a maximum output current level set as 0.130 in H2O (32.4 Pa). Specifies the fan type categorized as Blower. Equipped with features categorized as Locked Rotor Protection. Rated with IP IP55 - Dust Protected, Water Resistant to safeguard against dust and moisture penetration. Noise level measurement 27.0dB(A) for sound or electronic quality. Temperature range 14 ~ 158°F (-10 ~ 70°C) for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Power measured in watts 960 mW for optimal operation. Product status Active concerning availability and lifecycle. The RPM value 3500 RPM for motors or mechanical devices. Classification series for the product or component DB. Details on package size Square/Rounded - 40.5mm L x 40.5mm H for electrical or mechanical components. Measurement dimensions Square/Rounded - 40.5mm L x 40.5mm H for component specifications. Static pressure value 0.130 in H2O (32.4 Pa) for air or fluid systems. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Termination method 2 Wire Leads for electrical or mechanical connections. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. The operating voltage rating of the device 12VDC. Horizontal width measurement 19.50mm.
