Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 288 | ₹ 4,352.10000 | ₹ 12,53,404.80 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 30 | ₹ 4,419.59000 | ₹ 1,32,587.70 |
| 12 | ₹ 4,819.31000 | ₹ 57,831.72 |
| 1 | ₹ 6,040.92000 | ₹ 6,040.92 |

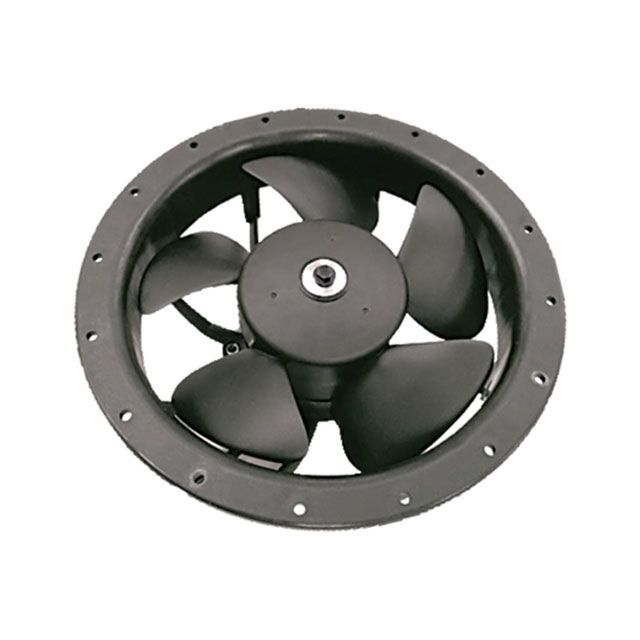

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | AFL, EST | |
| IC Encapsulation Type | Box | |
| Availability Status | Active | |
| Rated Operating Voltage | 115/230VAC | |
| Package Size Specs | Round - 222mm Dia | |
| Horizontal Width Dimension | 85.70mm | |
| Ventilation Rate | 323.9 CFM (9.07m³/min) | |
| Airflow Static Pressure | 0.630 in H2O (156.9 Pa) | |
| Rotary Bearing Design | Ball | |
| Airflow Fan Category | Tubeaxial | |
| Key Product Highlights | Dual Speed, Dual Voltage, Electronic Commutation (EC), Locked Rotor Protection, Thermal Overload Protector (TOP) | |
| Electrical Noise Level | 57.0dB(A) | |
| Wattage Power Level | 8.00W, 17.00W | |
| Revolutions Per Minute | 1800/2500 RPM | |
| Circuit End Method | 3 Wire Leads | |
| Dust Water Resistance Rating | IP56 - Dust Protected, Water Resistant | |
| Ambient Temp Range | -40 ~ 131°F (-40 ~ 55°C) | |
| Certification Body | cURus | |
| Product Weight Grams | - |
Description
Delivers airflow rated at 323.9 CFM (9.07m³/min) for optimal cooling efficiency. Complies with the criteria of entities acknowledged as cURus. Equipped with a Ball type bearing for reliable mechanical rotation. Facilitates a maximum output current level set as 0.630 in H2O (156.9 Pa). Specifies the fan type categorized as Tubeaxial. Equipped with features categorized as Dual Speed, Dual Voltage, Electronic Commutation (EC), Locked Rotor Protection, Thermal Overload Protector (TOP). Rated with IP IP56 - Dust Protected, Water Resistant to safeguard against dust and moisture penetration. Noise level measurement 57.0dB(A) for sound or electronic quality. Temperature range -40 ~ 131°F (-40 ~ 55°C) for environmental conditions impacting thermal efficiency. Type of housing Box for safeguarding or transporting components. Power measured in watts 8.00W, 17.00W for optimal operation. Product status Active concerning availability and lifecycle. The RPM value 1800/2500 RPM for motors or mechanical devices. Classification series for the product or component AFL, EST. Details on package size Round - 222mm Dia for electrical or mechanical components. Measurement dimensions Round - 222mm Dia for component specifications. Static pressure value 0.630 in H2O (156.9 Pa) for air or fluid systems. Termination method 3 Wire Leads for electrical or mechanical connections. The operating voltage rating of the device 115/230VAC. Horizontal width measurement 85.70mm.
