Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 24000 | ₹ 35.94000 | ₹ 8,62,560.00 |
| 20000 | ₹ 36.20000 | ₹ 7,24,000.00 |
| 14000 | ₹ 36.73000 | ₹ 5,14,220.00 |
| 10000 | ₹ 37.29000 | ₹ 3,72,900.00 |
| 6000 | ₹ 38.24000 | ₹ 2,29,440.00 |
| 4000 | ₹ 39.09000 | ₹ 1,56,360.00 |
| 2000 | ₹ 40.80000 | ₹ 81,600.00 |
| 1000 | ₹ 42.88000 | ₹ 42,880.00 |
| 500 | ₹ 45.41000 | ₹ 22,705.00 |
| 100 | ₹ 53.57000 | ₹ 5,357.00 |
| 50 | ₹ 58.40000 | ₹ 2,920.00 |
| 10 | ₹ 74.02000 | ₹ 740.20 |
| 1 | ₹ 113.26000 | ₹ 113.26 |

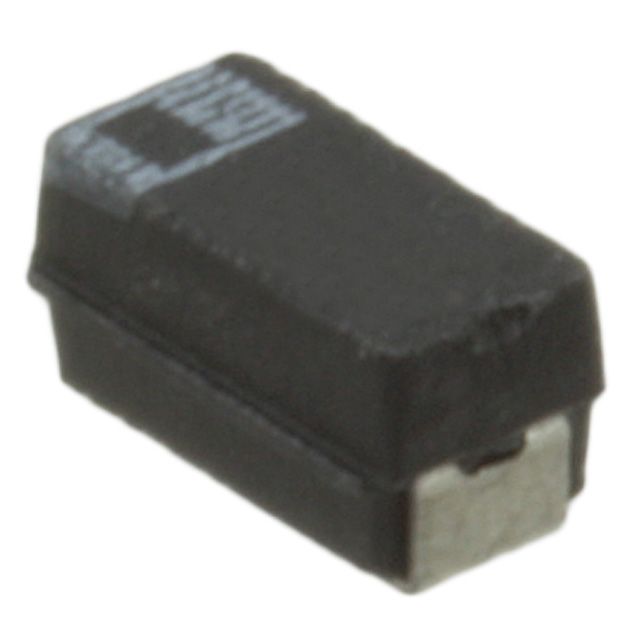

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | vPolyTan™ T55 | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Storage Capacity Electrical | 220 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 6.3 V | |
| Device Type Classification | Molded | |
| Series Resistance Equivalent | 25mOhm @ 100kHz | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Expected Life at Temperature | - | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 1411 (3528 Metric) | |
| Package Size Specs | 0.138" L x 0.110" W (3.50mm x 2.80mm) | |
| Maximum Mounted Height | 0.083" (2.10mm) | |
| Pin Lead Gap | - | |
| Vendor Dimension Code | B | |
| Performance Rating Specs | - | |
| Key Product Highlights | General Purpose |
Description
Provides a capacitance level rated at 220 µF to maintain circuit stability. Displays ESR rated at 25mOhm @ 100kHz. Equipped with features categorized as General Purpose. Maximum installed height of 0.083" (2.10mm) for components affixed to the board. Vendor's dimension code B for uniformity and reference. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 1411 (3528 Metric) that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. Classification series for the product or component vPolyTan™ T55. Details on package size 0.138" L x 0.110" W (3.50mm x 2.80mm) for electrical or mechanical components. Measurement dimensions 0.138" L x 0.110" W (3.50mm x 2.80mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. Type classification Molded for specifications. The operating voltage rating of the device 6.3 V.
