Manufacturer

CORNELL DUBILIER KNOWLES

Part Number	Manufacturer	Price	Product Series Line	IC Encapsulation Type	Availability Status	Device Type Classification	Storage Capacity Electrical	Accuracy Tolerance Percentage	Rated Operating Voltage	Series Resistance Equivalent	Expected Life at Temperature	Ambient Temp Range	Performance Rating Specs	Intended Uses	Key Product Highlights	Low-Freq Ripple Amps	High-Freq Ripple Amps	AC Resistance Value	Pin Lead Gap	Package Size Specs	Maximum Mounted Height	SMD Pad Footprint	Attachment Mounting Style	Component Housing Style
107ULG035MGU CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	ULG	Bulk	Active	Polymer	100 µF	±20%	35 V	65mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	93.5 mA @ 120 Hz	1.87 A @ 100 kHz	-	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.551" (14.00mm)	-	Through Hole	Radial, Can

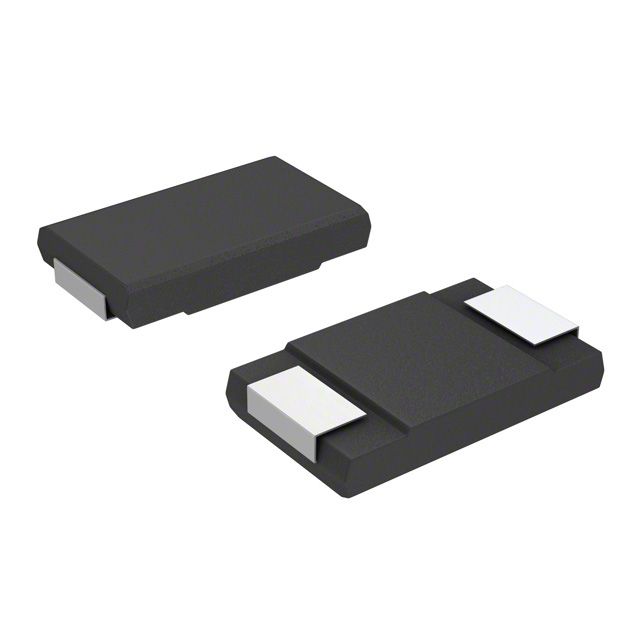

106XMPL012MG19 CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	XMPL	Bulk	Active	Polymer	10 µF	±20%	12 V	55mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	Decoupling	-	-	1 A @ 100 kHz	-	-	0.287" L x 0.169" W (7.30mm x 4.30mm)	0.083" (2.10mm)	-	Surface Mount	2917 (7343 Metric)
227UVR6R3MEW CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	UVR	Bulk	Active	Polymer	220 µF	±20%	6.3 V	15mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	122.5 mA @ 120 Hz	2.45 A @ 120 kHz	-	-	0.248" Dia (6.30mm)	0.248" (6.30mm)	0.260" L x 0.260" W (6.60mm x 6.60mm)	Surface Mount	Radial, Can - SMD
ESRL150M12R CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	ESRL	Tape & Reel (TR)	Obsolete	Polymer	15 µF	±20%	12.5 V	40mOhm	1000 Hrs @ 105°C	-55°C ~ 105°C	-	Bypass, Decoupling	-	-	1.4 A @ 100 kHz	-	-	0.287" L x 0.169" W (7.30mm x 4.30mm)	0.043" (1.10mm)	0.287" L x 0.169" W (7.30mm x 4.30mm)	Surface Mount	2917 (7343 Metric)
PPC123M010FG2SAA CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	PPC	Box	Obsolete	Polymer	12000 µF	±20%	10 V	6mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	16 A @ 120 Hz	18 A @ 20 kHz	-	-	6.250" L x 5.000" W (158.75mm x 127.00mm)	0.039" (1.00mm)	-	Chassis Mount	FlatPack, Tabbed

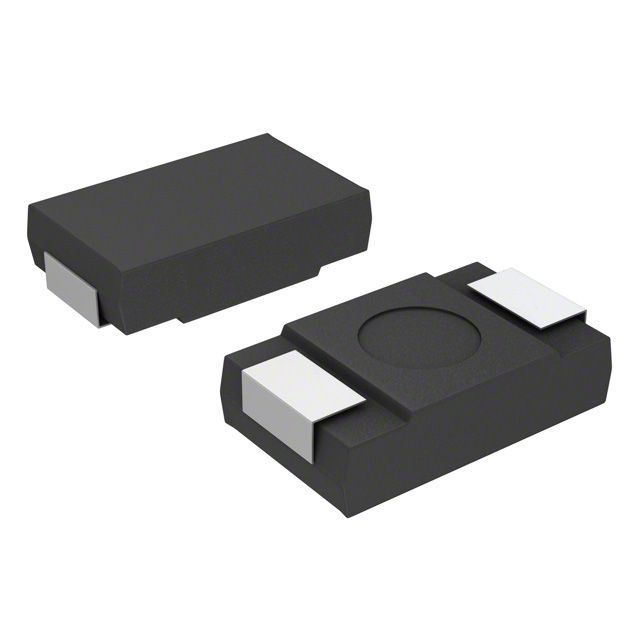

SPSX331M02R-4 CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	SPSX	Tape & Reel (TR)	Obsolete	Polymer	330 µF	±20%	2 V	4.5mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	General Purpose	-	-	3.8 A @ 100 kHz	-	-	0.287" L x 0.169" W (7.30mm x 4.30mm)	0.083" (2.10mm)	-	Surface Mount	2917 (7343 Metric)
107ULR025MFH CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	ULR	Bulk	Active	Polymer	100 µF	±20%	25 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	100 mA @ 120 Hz	2 A @ 100 kHz	-	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.512" (13.00mm)	-	Through Hole	Radial, Can
SPCX221M02R CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	SPCX	Tape & Reel (TR)	Obsolete	Polymer	220 µF	±20%	2 V	15mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	General Purpose	-	-	2.7 A @ 100 kHz	-	-	0.287" L x 0.169" W (7.30mm x 4.30mm)	0.075" (1.90mm)	0.287" L x 0.169" W (7.30mm x 4.30mm)	Surface Mount	2917 (7343 Metric)
PPC802M016FG2SAA CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	PPC	Box	Obsolete	Polymer	8000 µF	±20%	16 V	6mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	16 A @ 120 Hz	18 A @ 20 kHz	-	-	6.250" L x 5.000" W (158.75mm x 127.00mm)	0.039" (1.00mm)	-	Chassis Mount	FlatPack, Tabbed
686XMPL010MG28 CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	XMPL	Bulk	Active	Polymer	68 µF	±20%	10 V	40mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	Decoupling	-	-	3 A @ 100 kHz	-	-	0.287" L x 0.169" W (7.30mm x 4.30mm)	0.118" (3.00mm)	-	Surface Mount	2917 (7343 Metric)
107UER016MED CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	UER	Bulk	Active	Polymer	100 µF	±20%	16 V	24mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	141 mA @ 120 Hz	2.82 A @ 100 kHz	-	0.098" (2.50mm)	0.248" Dia (6.30mm)	0.236" (6.00mm)	-	Through Hole	Radial, Can
227ULR010MEW CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	ULR	Bulk	Active	Polymer	220 µF	±20%	10 V	15mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	135 mA @ 120 Hz	2.7 A @ 100 kHz	-	0.098" (2.50mm)	0.248" Dia (6.30mm)	0.276" (7.00mm)	-	Through Hole	Radial, Can
336ULG020MEF CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	ULG	Bulk	Active	Polymer	33 µF	±20%	20 V	45mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	94 mA @ 120 Hz	1.88 A @ 100 kHz	-	0.098" (2.50mm)	0.248" Dia (6.30mm)	0.354" (9.00mm)	-	Through Hole	Radial, Can
336ULG025MFF CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	ULG	Bulk	Active	Polymer	33 µF	±20%	25 V	50mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	93.5 mA @ 120 Hz	1.87 A @ 100 kHz	-	0.138" (3.50mm)	0.315" Dia (8.00mm)	0.354" (9.00mm)	-	Through Hole	Radial, Can
SPSX561M02R-4 CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	SPSX	Tape & Reel (TR)	Obsolete	Polymer	560 µF	±20%	2 V	4.5mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	General Purpose	-	-	4 A @ 100 kHz	-	-	0.287" L x 0.169" W (7.30mm x 4.30mm)	0.083" (2.10mm)	-	Surface Mount	2917 (7343 Metric)
107ULR035MGU CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	ULR	Bulk	Active	Polymer	100 µF	±20%	35 V	60mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	100 mA @ 120 Hz	2 A @ 100 kHz	-	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.551" (14.00mm)	-	Through Hole	Radial, Can
336ULR010MEF CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	ULR	Bulk	Active	Polymer	33 µF	±20%	10 V	35mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	100 mA @ 120 Hz	2 A @ 100 kHz	-	0.098" (2.50mm)	0.248" Dia (6.30mm)	0.354" (9.00mm)	-	Through Hole	Radial, Can
108UER016MGU CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	UER	Bulk	Active	Polymer	1000 µF	±20%	16 V	11mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	280 mA @ 120 Hz	5.6 A @ 100 kHz	-	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.551" (14.00mm)	-	Through Hole	Radial, Can
108ULR016MGU CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	ULR	Bulk	Active	Polymer	1000 µF	±20%	16 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Decoupling	-	305 mA @ 120 Hz	6.1 A @ 100 kHz	-	0.197" (5.00mm)	0.394" Dia (10.00mm)	0.551" (14.00mm)	-	Through Hole	Radial, Can
106XMPL6R3MG19 CORNELL DUBILIER KNOWLES	CORNELL DUBILIER KNOWLES	-	XMPL	Bulk	Active	Polymer	10 µF	±20%	6.3 V	40mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	Decoupling	-	-	1 A @ 100 kHz	-	-	0.287" L x 0.169" W (7.30mm x 4.30mm)	0.083" (2.10mm)	-	Surface Mount	2917 (7343 Metric)
