Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 15000 | ₹ 37.21000 | ₹ 5,58,150.00 |
| 10000 | ₹ 37.40000 | ₹ 3,74,000.00 |
| 8000 | ₹ 37.58000 | ₹ 3,00,640.00 |
| 5000 | ₹ 37.77000 | ₹ 1,88,850.00 |
| 3000 | ₹ 38.21000 | ₹ 1,14,630.00 |
| 1000 | ₹ 39.09000 | ₹ 39,090.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2000 | ₹ 41.78000 | ₹ 83,560.00 |
| 1000 | ₹ 44.47000 | ₹ 44,470.00 |
| 500 | ₹ 56.58000 | ₹ 28,290.00 |
| 100 | ₹ 63.45000 | ₹ 6,345.00 |
| 50 | ₹ 64.49000 | ₹ 3,224.50 |
| 10 | ₹ 65.52000 | ₹ 655.20 |
| 1 | ₹ 114.78000 | ₹ 114.78 |
Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 44.04000 | ₹ 44,040.00 |
| 500 | ₹ 44.70000 | ₹ 22,350.00 |
| 250 | ₹ 45.37000 | ₹ 11,342.50 |
| 193 | ₹ 46.04000 | ₹ 8,885.72 |
Stock:
Distributor: 130
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 51.78000 | ₹ 51,780.00 |
| 5000 | ₹ 51.73000 | ₹ 2,58,650.00 |
| 10000 | ₹ 51.67000 | ₹ 5,16,700.00 |
Stock:
Distributor: 58
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 800 | ₹ 55.01000 | ₹ 44,008.00 |
| 600 | ₹ 68.76000 | ₹ 41,256.00 |
| 475 | ₹ 82.62000 | ₹ 39,244.50 |
| 50 | ₹ 96.37000 | ₹ 4,818.50 |
| 5 | ₹ 110.12000 | ₹ 550.60 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 113.03000 | ₹ 113.03 |
| 10 | ₹ 63.55000 | ₹ 635.50 |
| 100 | ₹ 60.34000 | ₹ 6,034.00 |
| 500 | ₹ 55.71000 | ₹ 27,855.00 |
| 1000 | ₹ 44.68000 | ₹ 44,680.00 |
| 2000 | ₹ 42.01000 | ₹ 84,020.00 |
| 5000 | ₹ 41.12000 | ₹ 2,05,600.00 |

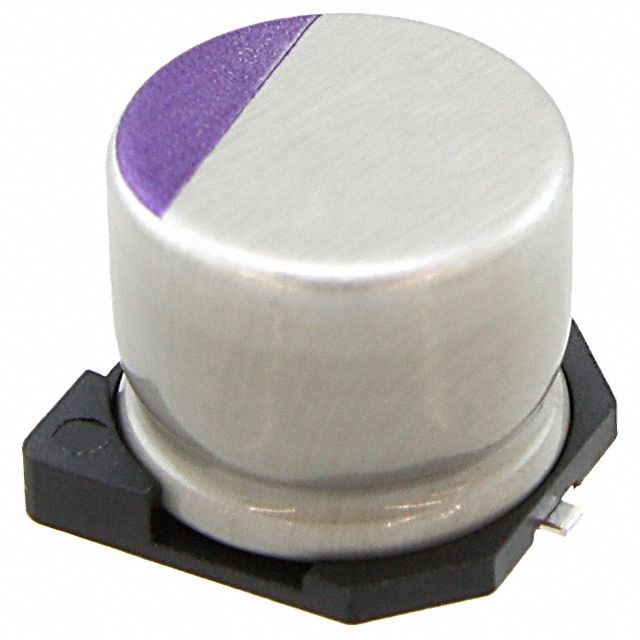

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | OS-CON™, SVP | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Polymer | |
| Storage Capacity Electrical | 47 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 20 V | |
| Series Resistance Equivalent | 45mOhm | |
| Expected Life at Temperature | 2000 Hrs @ 105°C | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Performance Rating Specs | - | |
| Intended Uses | General Purpose | |
| Key Product Highlights | - | |
| Low-Freq Ripple Amps | 94.5 mA @ 120 Hz | |
| High-Freq Ripple Amps | 1.89 A @ 100 kHz | |
| AC Resistance Value | - | |
| Pin Lead Gap | - | |
| Package Size Specs | 0.315" Dia (8.00mm) | |
| Maximum Mounted Height | 0.276" (7.00mm) | |
| SMD Pad Footprint | 0.327" L x 0.327" W (8.30mm x 8.30mm) | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Radial, Can - SMD |
Description
Perfectly designed for situations involving General Purpose. Provides a capacitance level rated at 47 µF to maintain circuit stability. Facilitates a maximum output current level set as 94.5 mA @ 120 Hz. Displays ESR rated at 45mOhm. Maximum installed height of 0.276" (7.00mm) for components affixed to the board. Operates with a durability of 2000 Hrs @ 105°C at specified temperature. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case Radial, Can - SMD that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. High-frequency ripple current 1.89 A @ 100 kHz for improved performance. Low-frequency ripple current 94.5 mA @ 120 Hz for improved performance. Classification series for the product or component OS-CON™, SVP. Details on package size 0.315" Dia (8.00mm) for electrical or mechanical components. Measurement dimensions 0.315" Dia (8.00mm) for component specifications. Dimensions of surface mount pads 0.327" L x 0.327" W (8.30mm x 8.30mm) for PCB design. Precision tolerance level ±20% in manufacturing processes. Type classification Polymer for specifications. The operating voltage rating of the device 20 V.
