Stock:
Distributor: 145
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 875 | ₹ 30.52000 | ₹ 26,705.00 |
| 705 | ₹ 31.78000 | ₹ 22,404.90 |
| 540 | ₹ 33.05000 | ₹ 17,847.00 |
| 375 | ₹ 35.60000 | ₹ 13,350.00 |
| 245 | ₹ 36.87000 | ₹ 9,033.15 |
| 115 | ₹ 39.41000 | ₹ 4,532.15 |
Stock:
Distributor: 69
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 900 | ₹ 51.53000 | ₹ 46,377.00 |
| 1800 | ₹ 51.00000 | ₹ 91,800.00 |
| 2700 | ₹ 50.37000 | ₹ 1,35,999.00 |
| 5400 | ₹ 49.75000 | ₹ 2,68,650.00 |
| 8100 | ₹ 49.22000 | ₹ 3,98,682.00 |
| 15300 | ₹ 48.59000 | ₹ 7,43,427.00 |
| 25200 | ₹ 48.06000 | ₹ 12,11,112.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10800 | ₹ 52.77000 | ₹ 5,69,916.00 |
| 1800 | ₹ 52.87000 | ₹ 95,166.00 |
| 900 | ₹ 53.23000 | ₹ 47,907.00 |
| 100 | ₹ 80.44000 | ₹ 8,044.00 |
| 50 | ₹ 83.14000 | ₹ 4,157.00 |
| 10 | ₹ 85.86000 | ₹ 858.60 |
| 1 | ₹ 127.29000 | ₹ 127.29 |
Stock:
Distributor: 11
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 500 | ₹ 66.75000 | ₹ 33,375.00 |
| 100 | ₹ 72.98000 | ₹ 7,298.00 |
| 50 | ₹ 79.21000 | ₹ 3,960.50 |
| 10 | ₹ 94.34000 | ₹ 943.40 |
| 1 | ₹ 115.70000 | ₹ 115.70 |
Stock:
Distributor: 113
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 900 | ₹ 67.28000 | ₹ 60,552.00 |
| 1800 | ₹ 66.66000 | ₹ 1,19,988.00 |
| 2700 | ₹ 66.04000 | ₹ 1,78,308.00 |
| 3600 | ₹ 65.41000 | ₹ 2,35,476.00 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 75.29000 | ₹ 75.29 |
| 100 | ₹ 107.69000 | ₹ 10,769.00 |
| 50 | ₹ 117.48000 | ₹ 5,874.00 |
| 25 | ₹ 129.94000 | ₹ 3,248.50 |
| 10 | ₹ 142.40000 | ₹ 1,424.00 |
Stock:
Distributor: 123
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 77.52000 | ₹ 77.52 |
| 1000 | ₹ 74.85000 | ₹ 74,850.00 |
| 2000 | ₹ 68.71000 | ₹ 1,37,420.00 |
| 4000 | ₹ 62.57000 | ₹ 2,50,280.00 |
| 6000 | ₹ 60.61000 | ₹ 3,63,660.00 |
| 10000 | ₹ 59.45000 | ₹ 5,94,500.00 |
Stock:
Distributor: 130
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 108.50000 | ₹ 108.50 |
| 50 | ₹ 77.06000 | ₹ 3,853.00 |
| 100 | ₹ 74.50000 | ₹ 7,450.00 |
| 250 | ₹ 71.34000 | ₹ 17,835.00 |
| 500 | ₹ 68.18000 | ₹ 34,090.00 |
| 900 | ₹ 65.02000 | ₹ 58,518.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 125.49000 | ₹ 125.49 |
| 10 | ₹ 81.88000 | ₹ 818.80 |
| 100 | ₹ 79.21000 | ₹ 7,921.00 |
| 500 | ₹ 60.34000 | ₹ 30,170.00 |
| 900 | ₹ 51.53000 | ₹ 46,377.00 |

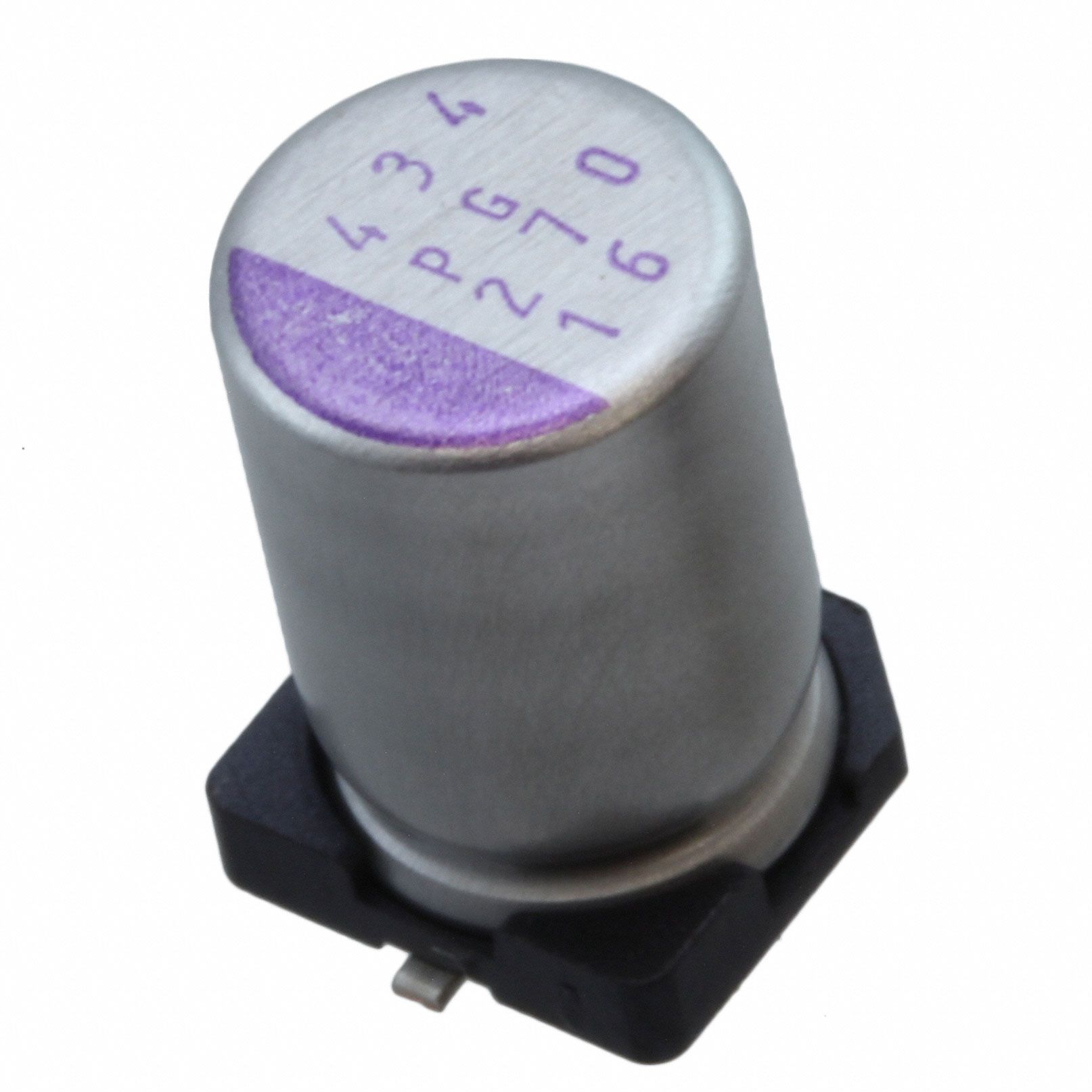

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | OS-CON™, SVPG | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Device Type Classification | Polymer | |
| Storage Capacity Electrical | 270 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 16 V | |
| Series Resistance Equivalent | 10mOhm | |
| Expected Life at Temperature | 5000 Hrs @ 105°C | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Performance Rating Specs | - | |
| Intended Uses | General Purpose | |
| Key Product Highlights | - | |
| Low-Freq Ripple Amps | 254 mA @ 120 Hz | |
| High-Freq Ripple Amps | 5.08 A @ 100 kHz | |
| AC Resistance Value | - | |
| Pin Lead Gap | - | |
| Package Size Specs | 0.248" Dia (6.30mm) | |
| Maximum Mounted Height | 0.315" (8.00mm) | |
| SMD Pad Footprint | 0.260" L x 0.260" W (6.60mm x 6.60mm) | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Radial, Can - SMD |
Description
Perfectly designed for situations involving General Purpose. Provides a capacitance level rated at 270 µF to maintain circuit stability. Facilitates a maximum output current level set as 254 mA @ 120 Hz. Displays ESR rated at 10mOhm. Maximum installed height of 0.315" (8.00mm) for components affixed to the board. Operates with a durability of 5000 Hrs @ 105°C at specified temperature. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case Radial, Can - SMD that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. High-frequency ripple current 5.08 A @ 100 kHz for improved performance. Low-frequency ripple current 254 mA @ 120 Hz for improved performance. Classification series for the product or component OS-CON™, SVPG. Details on package size 0.248" Dia (6.30mm) for electrical or mechanical components. Measurement dimensions 0.248" Dia (6.30mm) for component specifications. Dimensions of surface mount pads 0.260" L x 0.260" W (6.60mm x 6.60mm) for PCB design. Precision tolerance level ±20% in manufacturing processes. Type classification Polymer for specifications. The operating voltage rating of the device 16 V.
