Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 51000 | ₹ 15.64000 | ₹ 7,97,640.00 |
| 27000 | ₹ 15.88000 | ₹ 4,28,760.00 |
| 12000 | ₹ 16.12000 | ₹ 1,93,440.00 |
| 9000 | ₹ 16.37000 | ₹ 1,47,330.00 |
| 6000 | ₹ 16.62000 | ₹ 99,720.00 |
| 3000 | ₹ 16.87000 | ₹ 50,610.00 |
| 1 | ₹ 18.56000 | ₹ 18.56 |
Stock:
Distributor: 115
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 51000 | ₹ 15.64000 | ₹ 7,97,640.00 |
| 27000 | ₹ 15.88000 | ₹ 4,28,760.00 |
| 12000 | ₹ 16.12000 | ₹ 1,93,440.00 |
| 9000 | ₹ 16.37000 | ₹ 1,47,330.00 |
| 6000 | ₹ 16.62000 | ₹ 99,720.00 |
| 3000 | ₹ 16.87000 | ₹ 50,610.00 |
| 1 | ₹ 18.56000 | ₹ 18.56 |
Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 48000 | ₹ 17.23000 | ₹ 8,27,040.00 |
| 24000 | ₹ 17.52000 | ₹ 4,20,480.00 |
| 12000 | ₹ 17.83000 | ₹ 2,13,960.00 |
| 6000 | ₹ 18.31000 | ₹ 1,09,860.00 |
| 3000 | ₹ 18.80000 | ₹ 56,400.00 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2800 | ₹ 20.98000 | ₹ 58,744.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 25.70000 | ₹ 25,700.00 |
| 500 | ₹ 27.44000 | ₹ 13,720.00 |
| 100 | ₹ 33.08000 | ₹ 3,308.00 |
| 50 | ₹ 36.44000 | ₹ 1,822.00 |
| 10 | ₹ 47.24000 | ₹ 472.40 |
| 1 | ₹ 74.73000 | ₹ 74.73 |

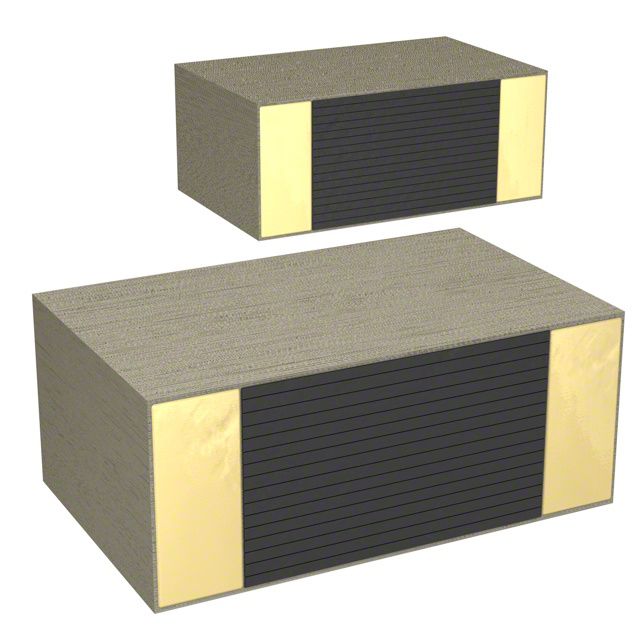

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ECH-U(B) | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Obsolete | |
| Storage Capacity Electrical | 5600 pF | |
| Accuracy Tolerance Percentage | ±5% | |
| AC Voltage Max | 11V | |
| DC Voltage Max | 16V | |
| Insulating Dielectric Type | Polyphenylene Sulfide (PPS), Metallized - Stacked | |
| Series Resistance Equivalent | - | |
| Ambient Temp Range | -55°C ~ 125°C | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | 0805 (2012 Metric) | |
| Package Size Specs | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Maximum Mounted Height | 0.039" (1.00mm) | |
| Circuit End Method | Solder Pads | |
| Pin Lead Gap | - | |
| Intended Uses | General Purpose | |
| Performance Rating Specs | - | |
| Key Product Highlights | - |
Description
Perfectly designed for situations involving General Purpose. Provides a capacitance level rated at 5600 pF to maintain circuit stability. Constructed with dielectric material specified as Polyphenylene Sulfide (PPS), Metallized - Stacked. Maximum installed height of 0.039" (1.00mm) for components affixed to the board. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Style of the enclosure/case 0805 (2012 Metric) that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component ECH-U(B). Details on package size 0.079" L x 0.049" W (2.00mm x 1.25mm) for electrical or mechanical components. Measurement dimensions 0.079" L x 0.049" W (2.00mm x 1.25mm) for component specifications. Termination method Solder Pads for electrical or mechanical connections. Precision tolerance level ±5% in manufacturing processes. The highest AC voltage specification 11V for the device. The highest DC voltage specification 16V for components.
