Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | C20A | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Storage Capacity Electrical | 100 µF | |
| Accuracy Tolerance Percentage | ±10% | |
| AC Voltage Max | 550V | |
| DC Voltage Max | 750V | |
| Insulating Dielectric Type | Polypropylene (PP), Metallized | |
| Series Resistance Equivalent | - | |
| Ambient Temp Range | -25°C ~ 70°C | |
| Attachment Mounting Style | Chassis, Stud Mount | |
| Component Housing Style | Radial, Can | |
| Package Size Specs | 2.953" Dia (75.00mm) | |
| Maximum Mounted Height | 9.803" (249.00mm) | |
| Circuit End Method | Threaded, Male | |
| Pin Lead Gap | 1.378" (35.00mm) | |
| Intended Uses | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | |
| Performance Rating Specs | - | |
| Key Product Highlights | Long Life |

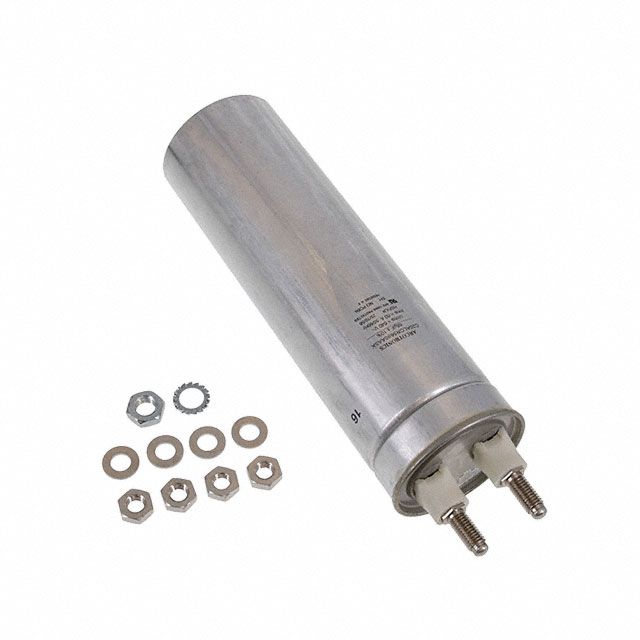

Description
Perfectly designed for situations involving Power Factor Correction (PFC); Commutation; EMI, RFI Suppression. Provides a capacitance level rated at 100 µF to maintain circuit stability. Constructed with dielectric material specified as Polypropylene (PP), Metallized. Equipped with features categorized as Long Life. Maximum installed height of 9.803" (249.00mm) for components affixed to the board. Lead spacing 1.378" (35.00mm) to meet PCB design requirements. Mounting configuration Chassis, Stud Mount for structural stability. Temperature range -25°C ~ 70°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Radial, Can that offers mechanical and thermal protection. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component C20A. Details on package size 2.953" Dia (75.00mm) for electrical or mechanical components. Measurement dimensions 2.953" Dia (75.00mm) for component specifications. Termination method Threaded, Male for electrical or mechanical connections. Precision tolerance level ±10% in manufacturing processes. The highest AC voltage specification 550V for the device. The highest DC voltage specification 750V for components.
