Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 096 PLL-4TSI | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Storage Capacity Electrical | 680 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 450 V | |
| Series Resistance Equivalent | 229mOhm @ 100Hz | |
| Expected Life at Temperature | 5000 Hrs @ 85°C | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Optical Polarization Mode | Polar | |
| Performance Rating Specs | - | |
| Intended Uses | General Purpose | |
| Low-Freq Ripple Amps | 4.2 A @ 100 Hz | |
| High-Freq Ripple Amps | - | |
| AC Resistance Value | 85 mOhms | |
| Pin Lead Gap | 0.886" (22.50mm) | |
| Package Size Specs | 1.575" Dia (40.00mm) | |
| Maximum Mounted Height | 1.969" (50.00mm) | |
| SMD Pad Footprint | - | |
| Attachment Mounting Style | Through Hole | |

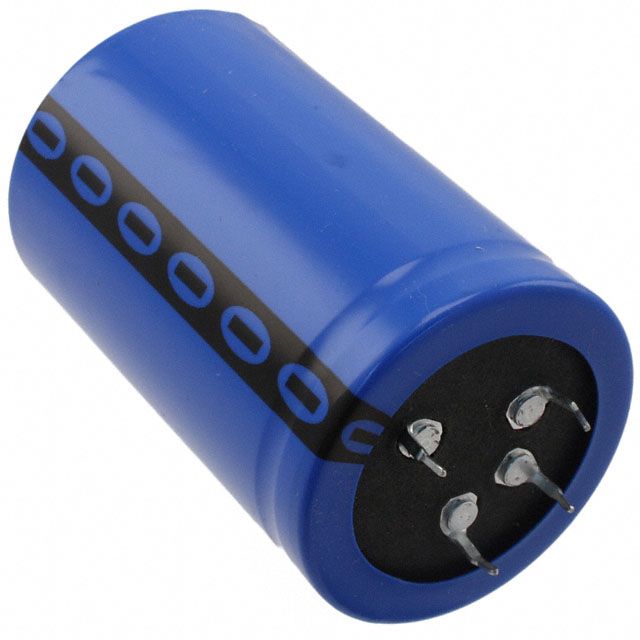

| Component Housing Style | Radial, Can - Snap-In - 4 Lead |
Description
Perfectly designed for situations involving General Purpose. Provides a capacitance level rated at 680 µF to maintain circuit stability. Facilitates a maximum output current level set as 4.2 A @ 100 Hz. Displays ESR rated at 229mOhm @ 100Hz. Maximum installed height of 1.969" (50.00mm) for components affixed to the board. Configured with 85 mOhms impedance to maintain signal quality. Lead spacing 0.886" (22.50mm) to meet PCB design requirements. Operates with a durability of 5000 Hrs @ 85°C at specified temperature. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Radial, Can - Snap-In - 4 Lead that offers mechanical and thermal protection. The Polar type of polarization for optical or RF applications. Product status Active concerning availability and lifecycle. Low-frequency ripple current 4.2 A @ 100 Hz for improved performance. Classification series for the product or component 096 PLL-4TSI. Details on package size 1.575" Dia (40.00mm) for electrical or mechanical components. Measurement dimensions 1.575" Dia (40.00mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. The operating voltage rating of the device 450 V.
