Stock:
Distributor: 118
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1390 | ₹ 10.41000 | ₹ 14,469.90 |
| 279 | ₹ 12.82000 | ₹ 3,576.78 |
| 1 | ₹ 24.03000 | ₹ 24.03 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 142 RHS | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Storage Capacity Electrical | 1000 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 16 V | |
| Series Resistance Equivalent | - | |
| Expected Life at Temperature | 2500 Hrs @ 105°C | |
| Ambient Temp Range | -40°C ~ 105°C | |
| Optical Polarization Mode | - | |
| Performance Rating Specs | - | |
| Intended Uses | General Purpose | |
| Low-Freq Ripple Amps | - | |
| High-Freq Ripple Amps | 756 mA @ 10 kHz | |
| AC Resistance Value | - | |
| Pin Lead Gap | 0.197" (5.00mm) | |
| Package Size Specs | 0.394" Dia (10.00mm) | |
| Maximum Mounted Height | 0.689" (17.50mm) | |
| SMD Pad Footprint | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Radial, Can |

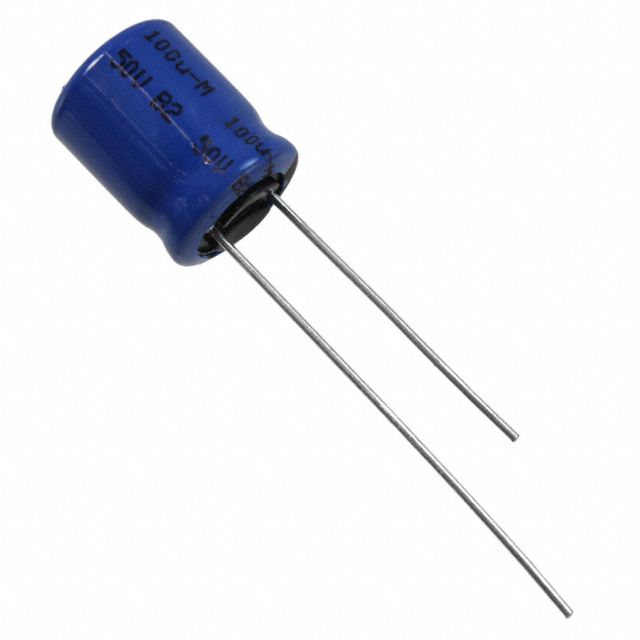

Description
Perfectly designed for situations involving General Purpose. Provides a capacitance level rated at 1000 µF to maintain circuit stability. Maximum installed height of 0.689" (17.50mm) for components affixed to the board. Lead spacing 0.197" (5.00mm) to meet PCB design requirements. Operates with a durability of 2500 Hrs @ 105°C at specified temperature. Mounting configuration Through Hole for structural stability. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Style of the enclosure/case Radial, Can that offers mechanical and thermal protection. Product status Active concerning availability and lifecycle. High-frequency ripple current 756 mA @ 10 kHz for improved performance. Classification series for the product or component 142 RHS. Details on package size 0.394" Dia (10.00mm) for electrical or mechanical components. Measurement dimensions 0.394" Dia (10.00mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. The operating voltage rating of the device 16 V.
