Stock:
Distributor: 116
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 8000 | ₹ 15.37000 | ₹ 1,22,960.00 |
| 6000 | ₹ 15.45000 | ₹ 92,700.00 |
| 4000 | ₹ 15.52000 | ₹ 62,080.00 |
| 2000 | ₹ 15.86000 | ₹ 31,720.00 |
| 1000 | ₹ 17.60000 | ₹ 17,600.00 |
Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 17.78000 | ₹ 17,780.00 |
| 3000 | ₹ 17.02000 | ₹ 51,060.00 |
| 5000 | ₹ 16.76000 | ₹ 83,800.00 |
| 8000 | ₹ 16.08000 | ₹ 1,28,640.00 |
| 10000 | ₹ 15.84000 | ₹ 1,58,400.00 |
| 25000 | ₹ 12.06000 | ₹ 3,01,500.00 |
| 50000 | ₹ 11.58000 | ₹ 5,79,000.00 |
| 100000 | ₹ 11.41000 | ₹ 11,41,000.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 21.75000 | ₹ 21,750.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 70.31000 | ₹ 70.31 |
| 10 | ₹ 42.81000 | ₹ 428.10 |
| 100 | ₹ 28.39000 | ₹ 2,839.00 |
| 500 | ₹ 22.61000 | ₹ 11,305.00 |
| 1000 | ₹ 20.65000 | ₹ 20,650.00 |
| 2000 | ₹ 18.78000 | ₹ 37,560.00 |
| 10000 | ₹ 15.84000 | ₹ 1,58,400.00 |

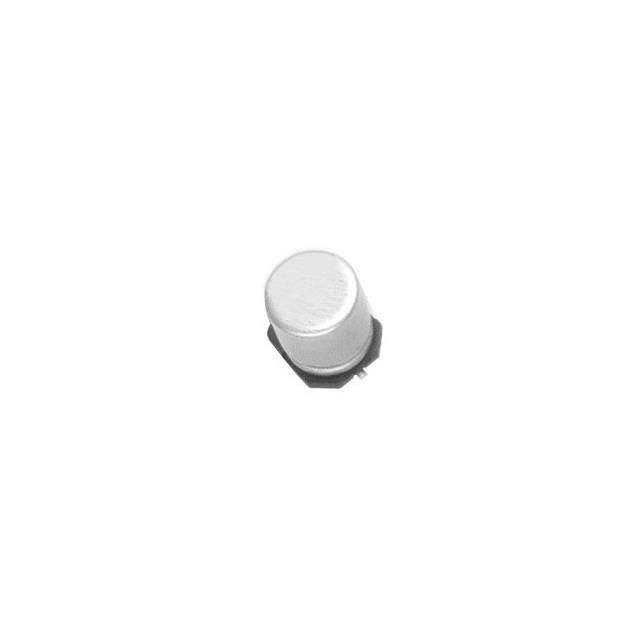

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | VVT | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Storage Capacity Electrical | 22 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 50 V | |
| Series Resistance Equivalent | 1.2Ohm @ 100kHz | |
| Expected Life at Temperature | 1000 Hrs @ 125°C | |
| Ambient Temp Range | -40°C ~ 125°C | |
| Optical Polarization Mode | Polar | |
| Performance Rating Specs | AEC-Q200 | |
| Intended Uses | Automotive | |
| Low-Freq Ripple Amps | 73.15 mA @ 120 Hz | |
| High-Freq Ripple Amps | 95 mA @ 100 kHz | |
| AC Resistance Value | - | |
| Pin Lead Gap | - | |
| Package Size Specs | 0.248" Dia (6.30mm) | |
| Maximum Mounted Height | 0.315" (8.00mm) | |
| SMD Pad Footprint | 0.260" L x 0.260" W (6.60mm x 6.60mm) | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Radial, Can - SMD |
Description
Perfectly designed for situations involving Automotive. Provides a capacitance level rated at 22 µF to maintain circuit stability. Facilitates a maximum output current level set as 73.15 mA @ 120 Hz. Displays ESR rated at 1.2Ohm @ 100kHz. Maximum installed height of 0.315" (8.00mm) for components affixed to the board. Operates with a durability of 1000 Hrs @ 125°C at specified temperature. Mounting configuration Surface Mount for structural stability. Temperature range -40°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Radial, Can - SMD that offers mechanical and thermal protection. The Polar type of polarization for optical or RF applications. Product status Active concerning availability and lifecycle. Criteria AEC-Q200 for electrical, mechanical, or environmental performance. High-frequency ripple current 95 mA @ 100 kHz for improved performance. Low-frequency ripple current 73.15 mA @ 120 Hz for improved performance. Classification series for the product or component VVT. Details on package size 0.248" Dia (6.30mm) for electrical or mechanical components. Measurement dimensions 0.248" Dia (6.30mm) for component specifications. Dimensions of surface mount pads 0.260" L x 0.260" W (6.60mm x 6.60mm) for PCB design. Precision tolerance level ±20% in manufacturing processes. The operating voltage rating of the device 50 V.
