Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 40000 | ₹ 5.84000 | ₹ 2,33,600.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | VVZ | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Storage Capacity Electrical | 220 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 6.3 V | |
| Series Resistance Equivalent | - | |
| Expected Life at Temperature | 1000 Hrs @ 105°C | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Optical Polarization Mode | Polar | |
| Performance Rating Specs | - | |
| Intended Uses | General Purpose | |
| Low-Freq Ripple Amps | 115 mA @ 120 Hz | |
| High-Freq Ripple Amps | 230 mA @ 100 kHz | |
| AC Resistance Value | - | |
| Pin Lead Gap | - | |
| Package Size Specs | 0.248" Dia (6.30mm) | |
| Maximum Mounted Height | 0.240" (6.10mm) | |
| SMD Pad Footprint | 0.260" L x 0.260" W (6.60mm x 6.60mm) | |
| Attachment Mounting Style | Surface Mount | |
| Component Housing Style | Radial, Can - SMD |

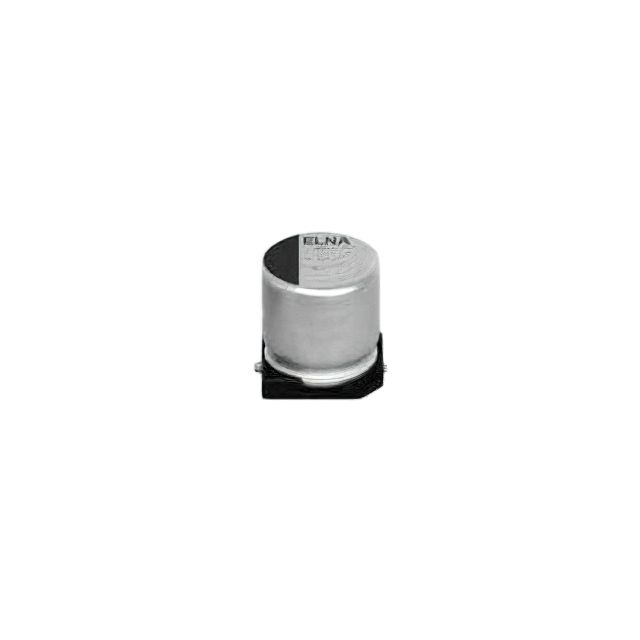

Description
Perfectly designed for situations involving General Purpose. Provides a capacitance level rated at 220 µF to maintain circuit stability. Facilitates a maximum output current level set as 115 mA @ 120 Hz. Maximum installed height of 0.240" (6.10mm) for components affixed to the board. Operates with a durability of 1000 Hrs @ 105°C at specified temperature. Mounting configuration Surface Mount for structural stability. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Radial, Can - SMD that offers mechanical and thermal protection. The Polar type of polarization for optical or RF applications. Product status Active concerning availability and lifecycle. High-frequency ripple current 230 mA @ 100 kHz for improved performance. Low-frequency ripple current 115 mA @ 120 Hz for improved performance. Classification series for the product or component VVZ. Details on package size 0.248" Dia (6.30mm) for electrical or mechanical components. Measurement dimensions 0.248" Dia (6.30mm) for component specifications. Dimensions of surface mount pads 0.260" L x 0.260" W (6.60mm x 6.60mm) for PCB design. Precision tolerance level ±20% in manufacturing processes. The operating voltage rating of the device 6.3 V.
