Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 26000 | ₹ 7.28000 | ₹ 1,89,280.00 |

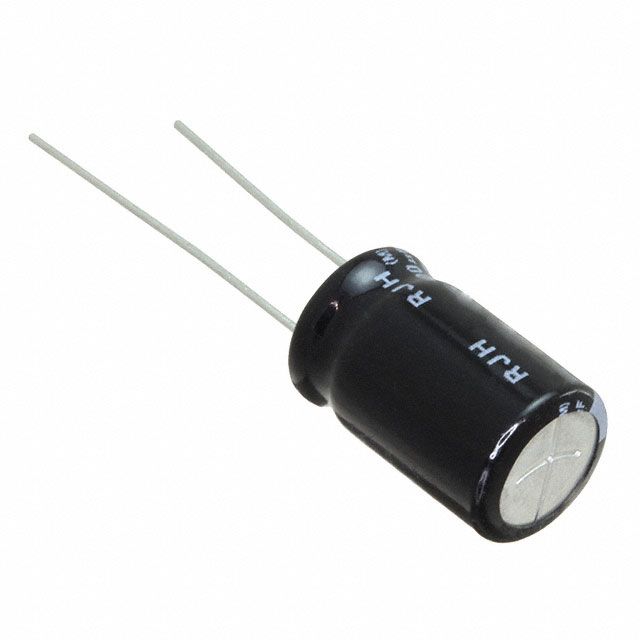

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | RJH | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Storage Capacity Electrical | 120 µF | |
| Accuracy Tolerance Percentage | ±20% | |
| Rated Operating Voltage | 35 V | |
| Series Resistance Equivalent | 1.66Ohm @ 120Hz | |
| Expected Life at Temperature | 3000 Hrs @ 105°C | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Optical Polarization Mode | Polar | |
| Performance Rating Specs | - | |
| Intended Uses | General Purpose | |
| Low-Freq Ripple Amps | 341.6 mA @ 120 Hz | |
| High-Freq Ripple Amps | - | |
| AC Resistance Value | 170 mOhms | |
| Pin Lead Gap | 0.138" (3.50mm) | |
| Package Size Specs | 0.315" Dia (8.00mm) | |
| Maximum Mounted Height | 0.512" (13.00mm) | |
| SMD Pad Footprint | - | |
| Attachment Mounting Style | Through Hole | |
| Component Housing Style | Radial, Can |
Description
Perfectly designed for situations involving General Purpose. Provides a capacitance level rated at 120 µF to maintain circuit stability. Facilitates a maximum output current level set as 341.6 mA @ 120 Hz. Displays ESR rated at 1.66Ohm @ 120Hz. Maximum installed height of 0.512" (13.00mm) for components affixed to the board. Configured with 170 mOhms impedance to maintain signal quality. Lead spacing 0.138" (3.50mm) to meet PCB design requirements. Operates with a durability of 3000 Hrs @ 105°C at specified temperature. Mounting configuration Through Hole for structural stability. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Style of the enclosure/case Radial, Can that offers mechanical and thermal protection. The Polar type of polarization for optical or RF applications. Product status Active concerning availability and lifecycle. Low-frequency ripple current 341.6 mA @ 120 Hz for improved performance. Classification series for the product or component RJH. Details on package size 0.315" Dia (8.00mm) for electrical or mechanical components. Measurement dimensions 0.315" Dia (8.00mm) for component specifications. Precision tolerance level ±20% in manufacturing processes. The operating voltage rating of the device 35 V.
