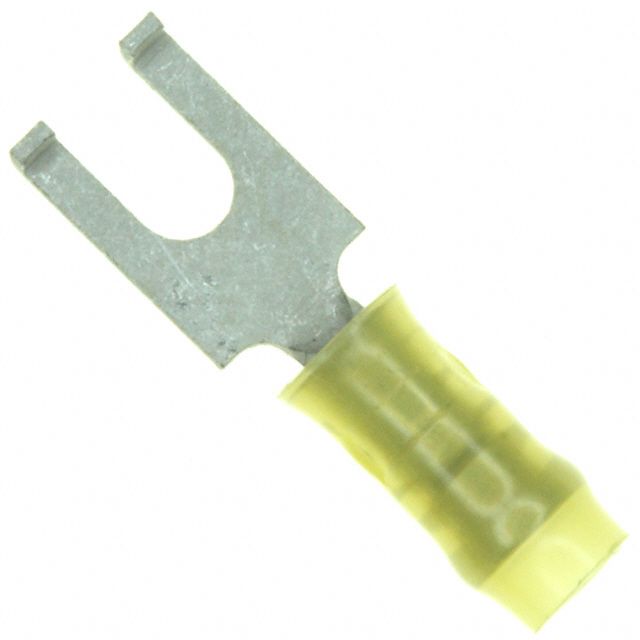

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PIDG | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| End Terminal Category | Flanged | |
| Terminal Stud Dimension | 2 Stud | |
| External Edge Span | 0.182" (4.62mm) | |
| Full Overall Length | 0.667" (16.94mm) | |
| Attachment Mounting Style | Free Hanging (In-Line) | |
| Circuit End Method | Crimp | |
| AWG Wire Size | 22-26 AWG | |
| Protective Insulation Layer | Insulated | |
| Key Product Highlights | Serrated Termination | |
| Visual Hue | Yellow | |
| Pin Surface Treatment | Tin | |
| Pin Alloy Composition | Copper |
Description
Offered in a shade referred to as Yellow to enhance the system's aesthetics. Includes contact finish plated at Tin to improve conductivity. Constructed from the contact material known as Copper. Equipped with features categorized as Serrated Termination. Insulation with a rating of Insulated for safety and efficiency. The complete length 0.667" (16.94mm) for thorough dimensional reference. Mounting configuration Free Hanging (In-Line) for structural stability. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component PIDG. Size of studs or tabs 2 Stud for electrical or mechanical connections. Classification of terminal Flanged for electrical or mechanical connections. Termination method Crimp for electrical or mechanical connections. Outer edge width measurement 0.182" (4.62mm) for fitting. Size of wire gauge 22-26 AWG according to electrical standards.
