Description

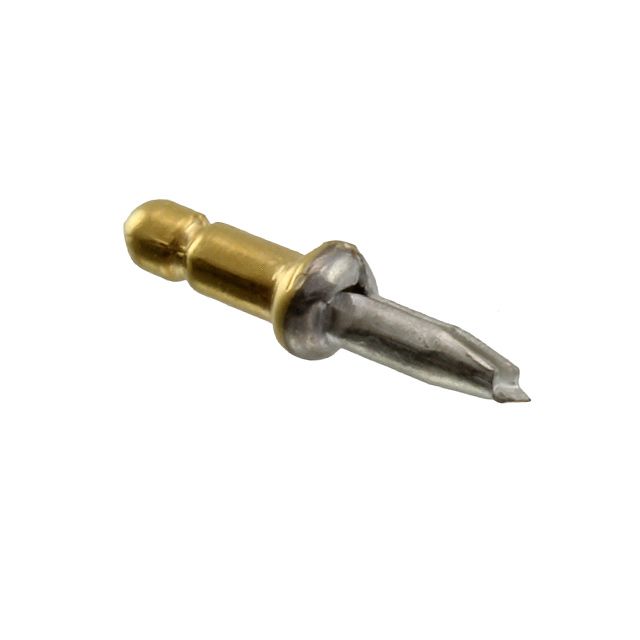

Features a thickness of 0.062" ~ 0.093" (1.57mm ~ 2.36mm) to ensure strong structural integrity. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 30.0µin (0.76µm). Constructed from the contact material known as Phosphor Bronze. Features a flange width noted at 0.090" (2.29mm). Insulation with a rating of Non-Insulated for safety and efficiency. Length above the flange 0.160" (4.06mm) for proper alignment. The length of the extension below the flange 0.150" (3.81mm) for installation purposes. The complete length 0.375" (9.53mm) for thorough dimensional reference. Dimensions of the mounting hole 0.046" ~ 0.050" (1.17mm ~ 1.27mm) for appropriate fastener fit. Mounting configuration Through Hole for structural stability. Type of housing Bulk for safeguarding or transporting components. Measurement of pin above flange 0.058" (1.47mm) Dia for connector requirements. Product status Active concerning availability and lifecycle. Design of terminal Flanged for connectors or cabling. Classification of terminal Single Post for electrical or mechanical connections. Termination method Press-Fit for electrical or mechanical connections.
