Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 41.01000 | ₹ 1,02,525.00 |
| 1000 | ₹ 43.75000 | ₹ 43,750.00 |
| 500 | ₹ 45.94000 | ₹ 22,970.00 |
| 250 | ₹ 48.25000 | ₹ 12,062.50 |
| 100 | ₹ 51.47000 | ₹ 5,147.00 |
| 50 | ₹ 54.05000 | ₹ 2,702.50 |
| 25 | ₹ 56.79000 | ₹ 1,419.75 |
| 10 | ₹ 60.58000 | ₹ 605.80 |
| 1 | ₹ 71.17000 | ₹ 71.17 |
Stock:
Distributor: 122
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 43.94000 | ₹ 43,940.00 |
Stock:
Distributor: 111
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 280 | ₹ 58.98000 | ₹ 16,514.40 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 71.20000 | ₹ 71.20 |
| 10 | ₹ 54.11000 | ₹ 541.10 |
| 100 | ₹ 48.33000 | ₹ 4,833.00 |
| 500 | ₹ 46.01000 | ₹ 23,005.00 |
| 1000 | ₹ 43.79000 | ₹ 43,790.00 |
| 2500 | ₹ 41.03000 | ₹ 1,02,575.00 |
| 10000 | ₹ 39.43000 | ₹ 3,94,300.00 |
Stock:
Distributor: 113
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 87.22000 | ₹ 87,220.00 |
| 2000 | ₹ 85.35000 | ₹ 1,70,700.00 |

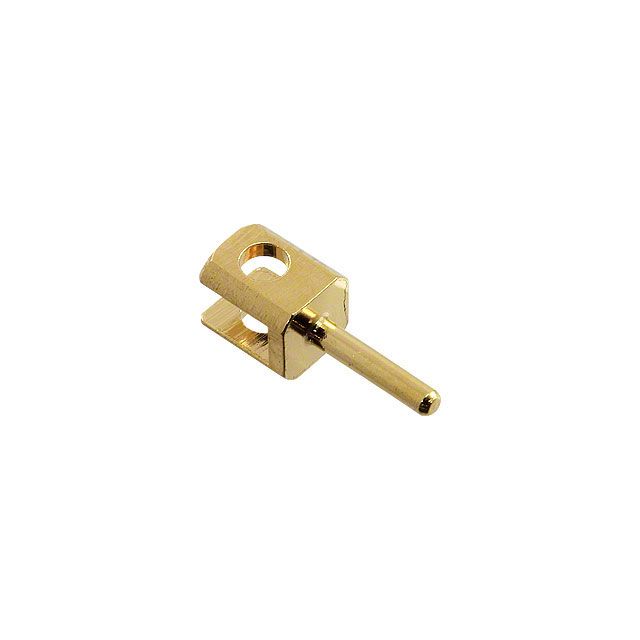

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 3620 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| End Terminal Category | PC Pin | |
| Connection Terminal Design | Single End | |
| Flange-Above Pin Gauge | 0.040" (1.02mm) Dia | |
| Flange-Below Pin Gauge | - | |
| Flange-Above Extension | 0.200" (5.08mm) | |
| Flange-Below Extension | - | |
| Full Overall Length | 0.356" (9.04mm) | |
| Mount Flange Width | - | |
| Fixing Hole Size | - | |
| Attachment Mounting Style | Board Edge | |
| Circuit End Method | Rivet | |
| Protective Insulation Layer | Non-Insulated | |
| Circuit Board Depth | 0.062" (1.57mm) | |
| Pin Alloy Composition | Brass Alloy | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 10.0µin (0.25µm) |
Description
Features a thickness of 0.062" (1.57mm) to ensure strong structural integrity. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 10.0µin (0.25µm). Constructed from the contact material known as Brass Alloy. Insulation with a rating of Non-Insulated for safety and efficiency. Length above the flange 0.200" (5.08mm) for proper alignment. The complete length 0.356" (9.04mm) for thorough dimensional reference. Mounting configuration Board Edge for structural stability. Type of housing Bulk for safeguarding or transporting components. Measurement of pin above flange 0.040" (1.02mm) Dia for connector requirements. Product status Active concerning availability and lifecycle. Classification series for the product or component 3620. Design of terminal Single End for connectors or cabling. Classification of terminal PC Pin for electrical or mechanical connections. Termination method Rivet for electrical or mechanical connections.
