Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| End Terminal Category | PC Pin | |
| Connection Terminal Design | Double End | |
| Flange-Above Pin Gauge | 0.040" (1.02mm) Dia | |
| Flange-Below Pin Gauge | 0.040" (1.02mm) Dia | |
| Flange-Above Extension | 0.250" (6.35mm) | |
| Flange-Below Extension | 0.567" (14.40mm) | |
| Full Overall Length | 0.832" (21.13mm) | |
| Mount Flange Width | 0.080" (2.03mm) | |
| Fixing Hole Size | 0.043" (1.09mm) | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | Press-Fit, Knurled | |
| Protective Insulation Layer | Non-Insulated | |
| Circuit Board Depth | - | |
| Pin Alloy Composition | Nickel Silver | |
| Pin Surface Treatment | - | |
| Pin Coating Depth | - |
Description

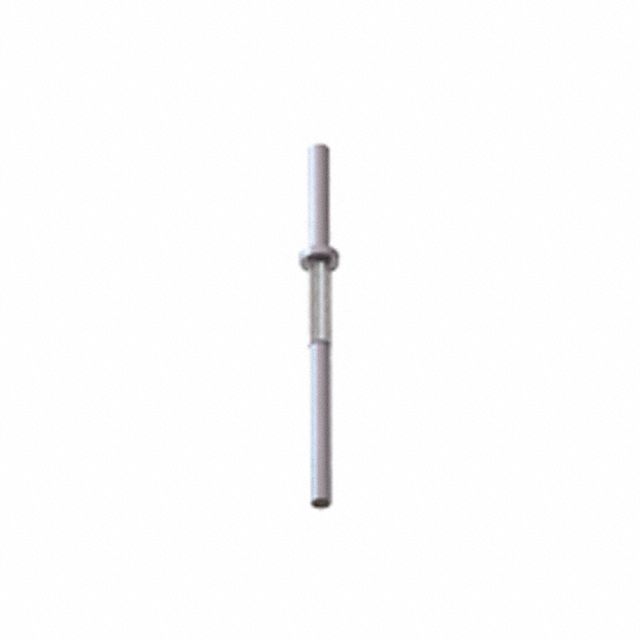

Constructed from the contact material known as Nickel Silver. Facilitates a maximum output current level set as 0.040" (1.02mm) Dia. Features a flange width noted at 0.080" (2.03mm). Insulation with a rating of Non-Insulated for safety and efficiency. Length above the flange 0.250" (6.35mm) for proper alignment. The length of the extension below the flange 0.567" (14.40mm) for installation purposes. The complete length 0.832" (21.13mm) for thorough dimensional reference. Dimensions of the mounting hole 0.043" (1.09mm) for appropriate fastener fit. Mounting configuration Through Hole for structural stability. Type of housing Bulk for safeguarding or transporting components. Measurement of pin above flange 0.040" (1.02mm) Dia for connector requirements. Measurement of pin below flange 0.040" (1.02mm) Dia for connector requirements. Product status Active concerning availability and lifecycle. Design of terminal Double End for connectors or cabling. Classification of terminal PC Pin for electrical or mechanical connections. Termination method Press-Fit, Knurled for electrical or mechanical connections.
