Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 5000 | ₹ 16.90000 | ₹ 84,500.00 |
| 2500 | ₹ 17.34000 | ₹ 43,350.00 |
| 1000 | ₹ 19.17000 | ₹ 19,170.00 |
| 500 | ₹ 20.72000 | ₹ 10,360.00 |
| 100 | ₹ 24.95000 | ₹ 2,495.00 |
| 25 | ₹ 29.43000 | ₹ 735.75 |
| 10 | ₹ 32.91000 | ₹ 329.10 |
| 1 | ₹ 43.59000 | ₹ 43.59 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 17.26000 | ₹ 43,150.00 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 41.83000 | ₹ 41.83 |
| 10 | ₹ 32.84000 | ₹ 328.40 |
| 25 | ₹ 29.37000 | ₹ 734.25 |
| 100 | ₹ 24.92000 | ₹ 2,492.00 |
| 500 | ₹ 20.65000 | ₹ 10,325.00 |
| 1000 | ₹ 19.13000 | ₹ 19,130.00 |
| 2500 | ₹ 17.27000 | ₹ 43,175.00 |
| 5000 | ₹ 17.18000 | ₹ 85,900.00 |

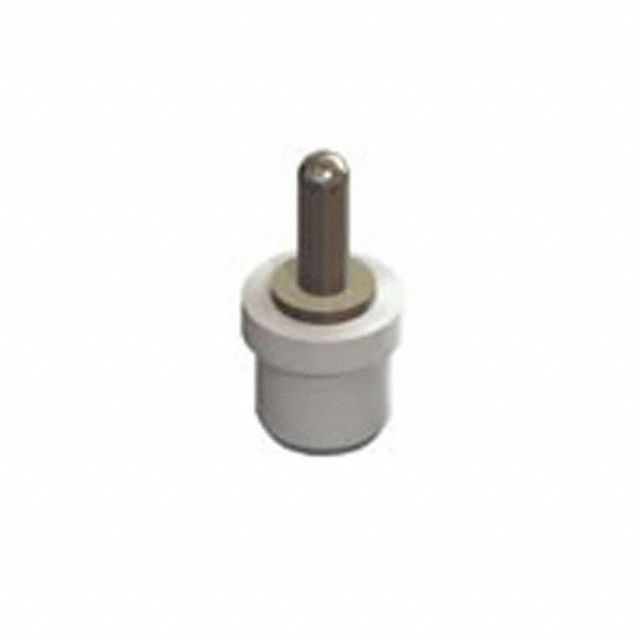

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| End Terminal Category | PC Pin | |
| Connection Terminal Design | Single End | |
| Flange-Above Pin Gauge | 0.080" (2.03mm) Dia | |
| Flange-Below Pin Gauge | - | |
| Flange-Above Extension | 0.258" (6.55mm) | |
| Flange-Below Extension | 0.105" (2.67mm) | |
| Full Overall Length | 0.405" (10.29mm) | |
| Mount Flange Width | 0.125" (3.18mm) | |
| Fixing Hole Size | 0.094" (2.39mm) | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | Swage | |
| Protective Insulation Layer | Non-Insulated | |
| Circuit Board Depth | 0.062" (1.57mm) | |
| Pin Alloy Composition | Brass | |
| Pin Surface Treatment | Tin | |
| Pin Coating Depth | 200.0µin (5.08µm) |
Description
Features a thickness of 0.062" (1.57mm) to ensure strong structural integrity. Includes contact finish plated at Tin to improve conductivity. Represents the thickness of the contact finish recorded at 200.0µin (5.08µm). Constructed from the contact material known as Brass. Features a flange width noted at 0.125" (3.18mm). Insulation with a rating of Non-Insulated for safety and efficiency. Length above the flange 0.258" (6.55mm) for proper alignment. The length of the extension below the flange 0.105" (2.67mm) for installation purposes. The complete length 0.405" (10.29mm) for thorough dimensional reference. Dimensions of the mounting hole 0.094" (2.39mm) for appropriate fastener fit. Mounting configuration Through Hole for structural stability. Type of housing Bulk for safeguarding or transporting components. Measurement of pin above flange 0.080" (2.03mm) Dia for connector requirements. Product status Active concerning availability and lifecycle. Design of terminal Single End for connectors or cabling. Classification of terminal PC Pin for electrical or mechanical connections. Termination method Swage for electrical or mechanical connections.
