Attribute
Description
Manufacturer Part Number
PM2R013NQ1R500
Manufacturer
Description

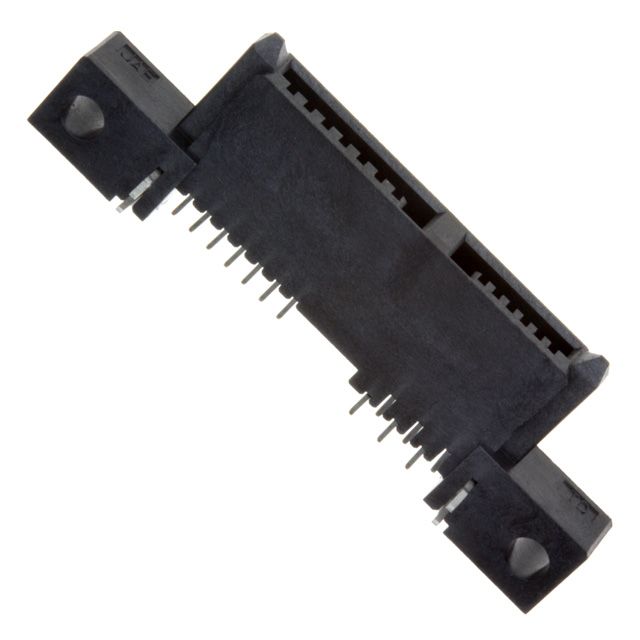

CONN SATA RCPT 13POS SLD R/A SMD
Manufacturer Lead Time
--
Our team will assist you shortly.
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PM2 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Plug Design Type | Receptacle | |
| Interface Connector Category | SATA | |
| Switch Position Options | 13 | |
| Attachment Mounting Style | Surface Mount, Right Angle | |
| Circuit End Method | Solder | |
| Key Product Highlights | Board Lock, Flange | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 11.8µin (0.30µm) |
Description
Utilizes a connector style known as Receptacle. Features a connector type acknowledged as SATA. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 11.8µin (0.30µm). Equipped with features categorized as Board Lock, Flange. Mounting configuration Surface Mount, Right Angle for structural stability. Overall number of positions 13 for switches or mechanical components. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component PM2. Termination method Solder for electrical or mechanical connections.
