Attribute
Description
Manufacturer Part Number

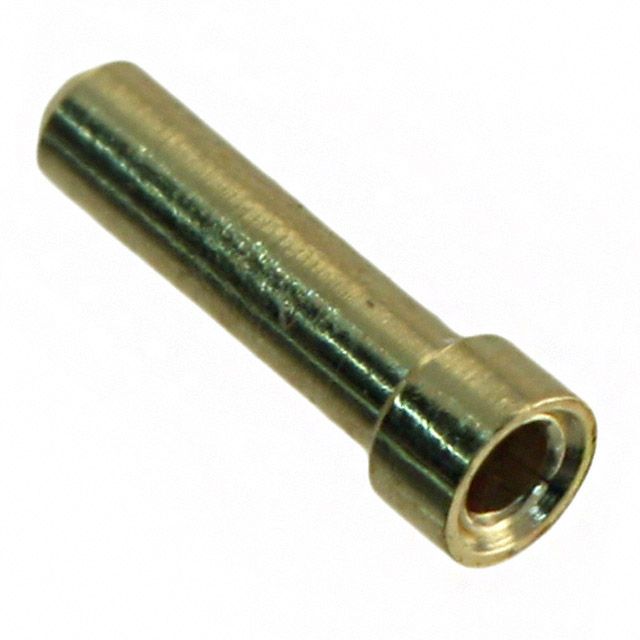

3016-0-15-15-21-27-10-0
Manufacturer
Description
CONN PIN RCPT .015-.022 SOLDER
Manufacturer Lead Time
6 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2500 | ₹ 13.72000 | ₹ 34,300.00 |
| 1000 | ₹ 14.63000 | ₹ 14,630.00 |
| 500 | ₹ 15.37000 | ₹ 7,685.00 |
| 250 | ₹ 16.14000 | ₹ 4,035.00 |
| 100 | ₹ 17.22000 | ₹ 1,722.00 |
| 50 | ₹ 18.09000 | ₹ 904.50 |
| 25 | ₹ 18.98000 | ₹ 474.50 |
| 10 | ₹ 20.29000 | ₹ 202.90 |
| 1 | ₹ 24.43000 | ₹ 24.43 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 24.03000 | ₹ 24.03 |
| 10 | ₹ 17.98000 | ₹ 179.80 |
| 100 | ₹ 16.02000 | ₹ 1,602.00 |
| 500 | ₹ 14.51000 | ₹ 7,255.00 |
| 1000 | ₹ 14.06000 | ₹ 14,060.00 |
| 2500 | ₹ 13.44000 | ₹ 33,600.00 |
| 10000 | ₹ 12.82000 | ₹ 1,28,200.00 |
| 25000 | ₹ 12.73000 | ₹ 3,18,250.00 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1000 | ₹ 57.00000 | ₹ 57,000.00 |
| 2500 | ₹ 32.79000 | ₹ 81,975.00 |
| 5000 | ₹ 21.16000 | ₹ 1,05,800.00 |
| 10000 | ₹ 15.84000 | ₹ 1,58,400.00 |
| 15000 | ₹ 13.22000 | ₹ 1,98,300.00 |
| 25000 | ₹ 11.01000 | ₹ 2,75,250.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 3016 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Active | |
| Lead Tail Configuration | No Tail | |
| Circuit End Method | Solder | |
| Full Overall Length | 0.155" (3.94mm) | |
| Compatible Pin Size | 0.015" ~ 0.022" (0.38mm ~ 0.56mm) | |
| Square Pin Fit Dimensions | - | |
| Socket Hole Size | 0.031" (0.79mm) | |
| Fixing Hole Size | 0.036" (0.91mm) | |
| Mount Flange Width | 0.048" (1.22mm) | |
| Solder Tail Wire Size | - | |
| Receptacle Insertion Depth | 0.138" (3.51mm) | |
| Pin Alloy Composition | Beryllium Copper | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 30.0µin (0.76µm) | |
| Quality Grade Level | - | |
| Certification Qualification | - |
