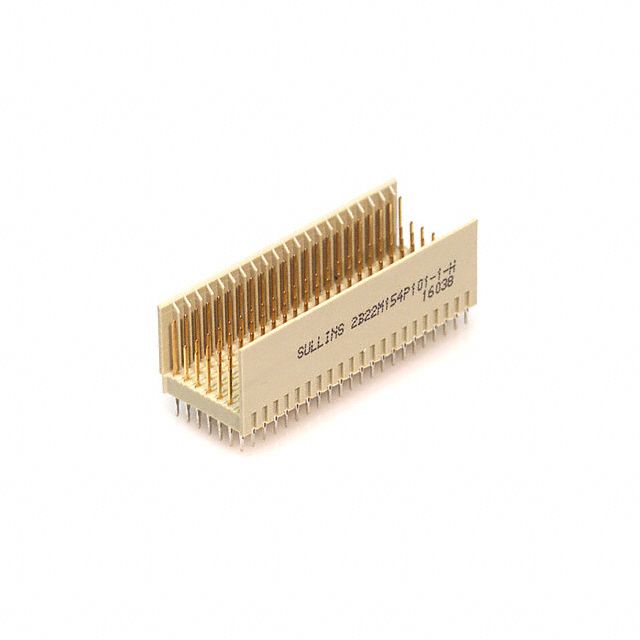

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Interface Connector Category | Header, Male Pins | |
| Plug Design Type | B 22 | |
| Switch Position Options | 154 (110 + 44 Ground) | |
| Populated Position Count | All | |
| Component Spacing Distance | 0.079" (2.00mm) | |
| Grid Row Count | 5 + 2 | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | Press-Fit | |
| Plug Application Role | CompactPCI | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 30.0µin (0.76µm) |
Description
Utilizes a connector style known as B 22. Features a connector type acknowledged as Header, Male Pins. Intended for connector roles classified as CompactPCI. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 30.0µin (0.76µm). Mounting configuration Through Hole for structural stability. Overall number of positions 154 (110 + 44 Ground) for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 5 + 2 for setting up matrices or displays. Type of housing Tube for safeguarding or transporting components. Distance 0.079" (2.00mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Termination method Press-Fit for electrical or mechanical connections.
