Product Attributes

Type	Description	Select All
Category	Board-to-Board Wire-to-Board Connectors Metric Backplane Connectors
Import Duty Classification	-
Product Series Line	har-bus® HM
IC Encapsulation Type	Bulk
Availability Status	Obsolete
Interface Connector Category	Receptacle, Female Sockets
Plug Design Type	-
Switch Position Options	72
Populated Position Count	All
Component Spacing Distance	0.079" (2.00mm)
Grid Row Count	6
Attachment Mounting Style	Through Hole, Right Angle
Circuit End Method	Press-Fit
Plug Application Role	-
Pin Surface Treatment	Gold
Pin Coating Depth	-

Description

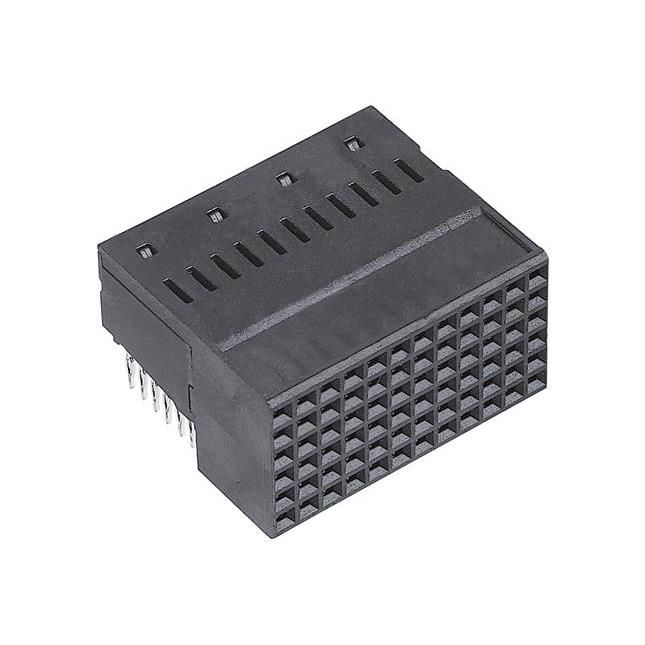

Features a connector type acknowledged as Receptacle, Female Sockets. Includes contact finish plated at Gold to improve conductivity. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 72 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 6 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. Distance 0.079" (2.00mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component har-bus® HM. Termination method Press-Fit for electrical or mechanical connections.
