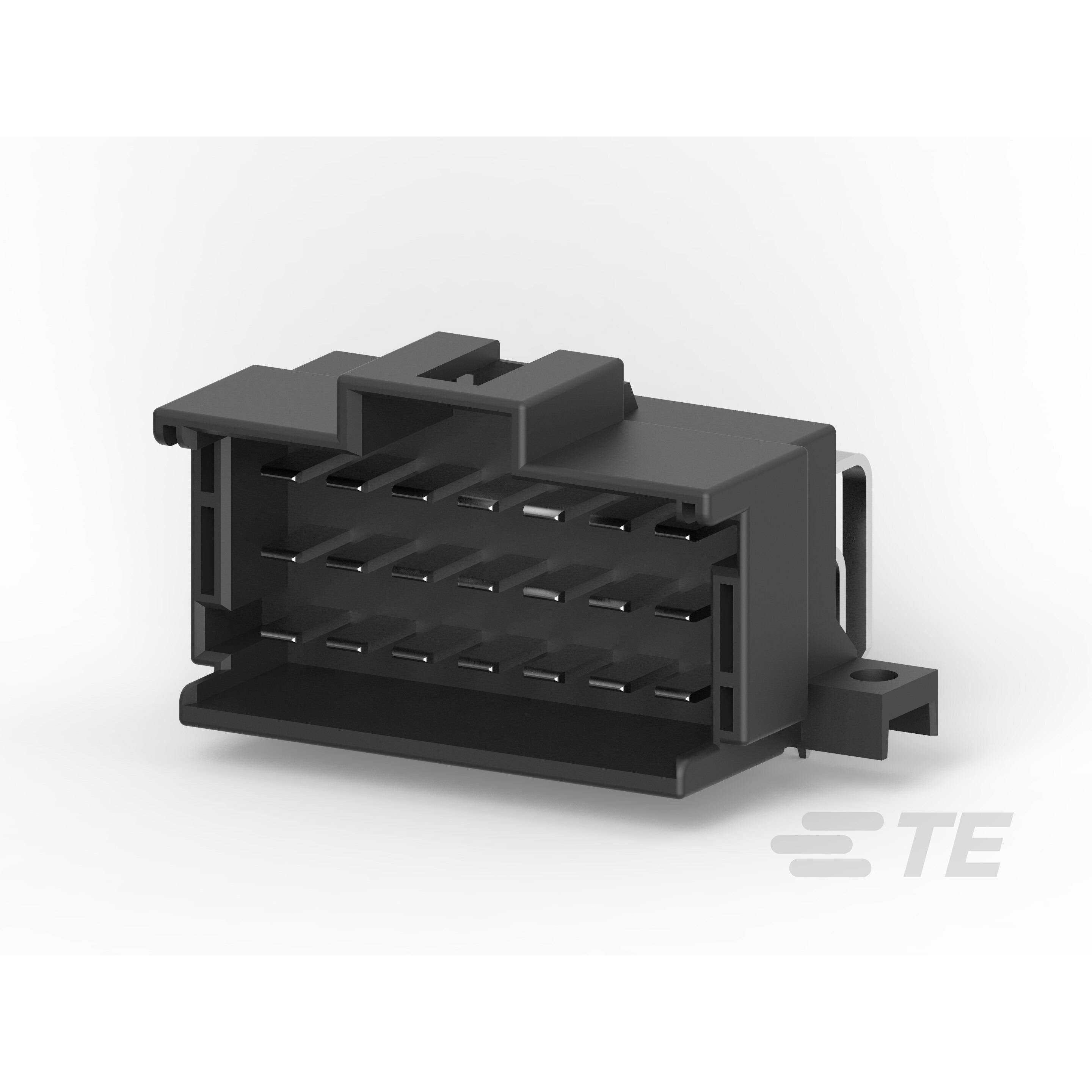

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | MCP | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Interface Connector Category | Header | |
| Pin Interface Category | Tab | |
| Mating Connector Pitch | 0.197" (5.00mm) | |
| Switch Position Options | 21 | |
| Grid Row Count | 3 | |
| Mating Row Interval | 0.217" (5.51mm) | |
| Populated Position Count | All | |
| Design Style Variant | Board to Board or Cable | |
| Connector Shroud Coverage | Shrouded - 4 Wall | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Circuit End Method | Solder | |
| Secure Attachment Method | Latch Holder | |
| Engagement Pin Length | - | |
| Tail Pin Extension | 0.118" (3.00mm) | |
| Full Pin Contact Span | - | |
| Barrier Wall Height | 1.012" (25.70mm) | |
| Pin Profile Design | Rectangular | |
| Engaging Pin Coating | Tin | |
| Engagement Layer Thickness | - | |
| Post-Contact Pin Layer | - | |
| Pin Alloy Composition | Copper Alloy | |
| Dielectric Insulation Type | Polyamide (PA66), Nylon 6/6, Glass Filled | |
| Key Product Highlights | Mounting Flange | |
| Ambient Temp Range | -40°C ~ 100°C | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | - | |
| Covering Wire Hue | Black | |
| Ampere Capacity Rating | - | |
| Max Voltage Specification | - |
Description
Specifies connector spacing defined as 0.197" (5.00mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Tin. Incorporates the length of the post contact specified as 0.118" (3.00mm). Constructed from the contact material known as Copper Alloy. Crafted with a contact shape described as Rectangular. Makes use of a contact type known as Tab. Utilizes a fastening type recognized as Latch Holder. Equipped with features categorized as Mounting Flange. Available in Black color of insulation for easy identification. An insulation height of 1.012" (25.70mm) provides sufficient electrical clearance. Constructed with Polyamide (PA66), Nylon 6/6, Glass Filled insulation material for durability. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 21 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 3 for setting up matrices or displays. Temperature range -40°C ~ 100°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. The distance 0.197" (5.00mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. The 0.217" (5.51mm) spacing between rows for proper connector alignment to ensure a precise fit. Classification series for the product or component MCP. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Board or Cable for design or arrangement. Termination method Solder for electrical or mechanical connections.
