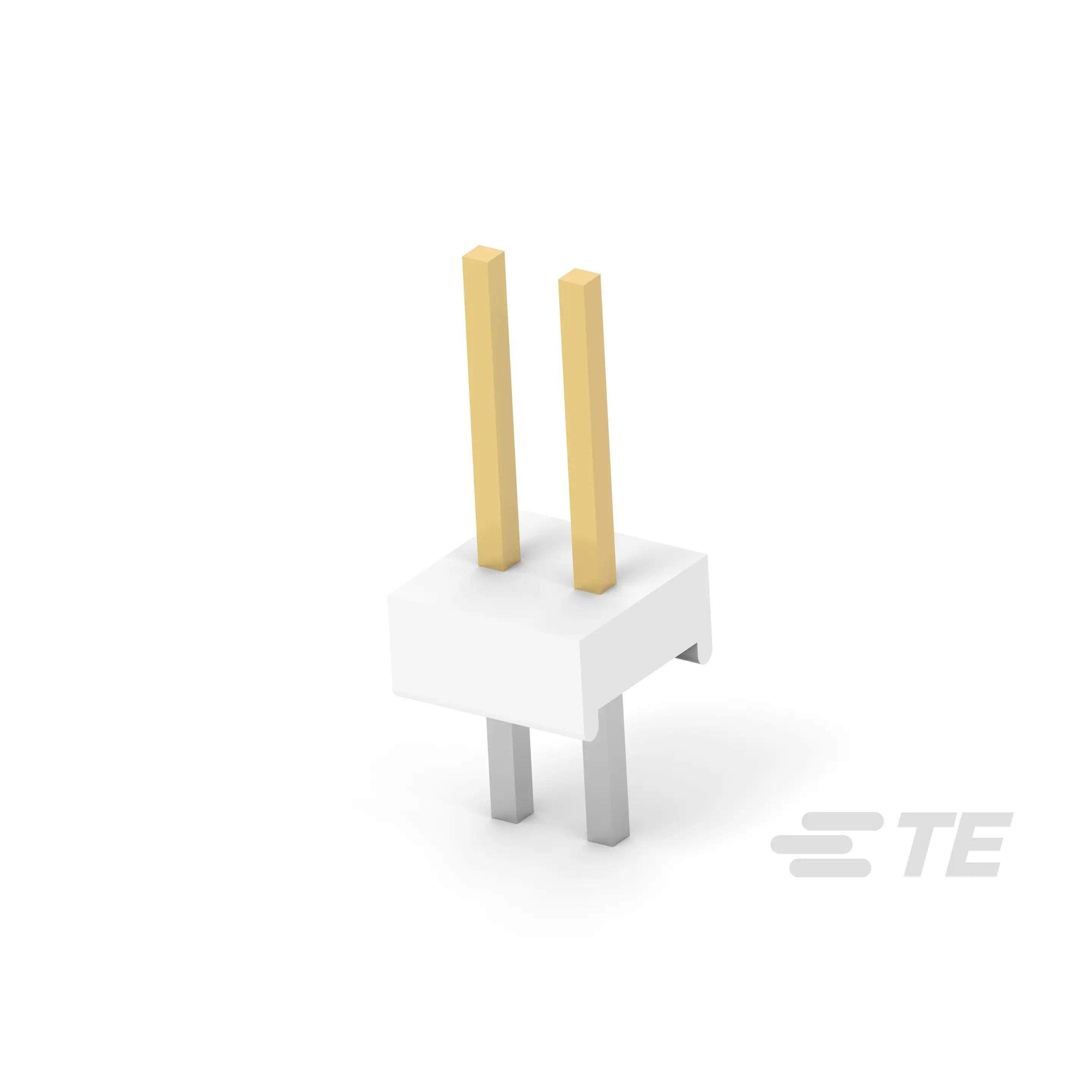

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | MTA-100 | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Interface Connector Category | Header | |
| Pin Interface Category | Male Pin | |
| Mating Connector Pitch | 0.100" (2.54mm) | |
| Switch Position Options | 2 | |
| Grid Row Count | 1 | |
| Mating Row Interval | - | |
| Populated Position Count | All | |
| Design Style Variant | Board to Cable/Wire | |
| Connector Shroud Coverage | Unshrouded | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | Solder | |
| Secure Attachment Method | - | |
| Engagement Pin Length | 0.295" (7.49mm) | |
| Tail Pin Extension | 0.140" (3.56mm) | |
| Full Pin Contact Span | 0.535" (13.59mm) | |
| Barrier Wall Height | 0.100" (2.54mm) | |
| Pin Profile Design | Square | |
| Engaging Pin Coating | Gold | |
| Engagement Layer Thickness | 30.0µin (0.76µm) | |
| Post-Contact Pin Layer | Tin-Lead | |
| Pin Alloy Composition | Copper Alloy | |
| Dielectric Insulation Type | Thermoplastic | |
| Key Product Highlights | - | |
| Ambient Temp Range | -55°C ~ 105°C | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Covering Wire Hue | Natural | |
| Ampere Capacity Rating | Varies by Wire Gauge | |
| Max Voltage Specification | 250VAC |
Description
Specifies connector spacing defined as 0.100" (2.54mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Gold. Provides a post-contact finish defined by Tin-Lead. Emphasizes the thickness of the mating finish denoted as 30.0µin (0.76µm). Specifies the length of the mating contact noted at 0.295" (7.49mm). Incorporates the length of the post contact specified as 0.140" (3.56mm). Constructed from the contact material known as Copper Alloy. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to Varies by Wire Gauge. Available in Natural color of insulation for easy identification. An insulation height of 0.100" (2.54mm) provides sufficient electrical clearance. Constructed with Thermoplastic insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole for structural stability. Overall number of positions 2 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Complete contact span 0.535" (13.59mm) for ensuring connector reliability. Type of housing Bulk for safeguarding or transporting components. The distance 0.100" (2.54mm) to achieve correct alignment with the corresponding connector. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component MTA-100. Extent of insulation Unshrouded for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Solder for electrical or mechanical connections. Voltage specification 250VAC for electronic devices.
