Description

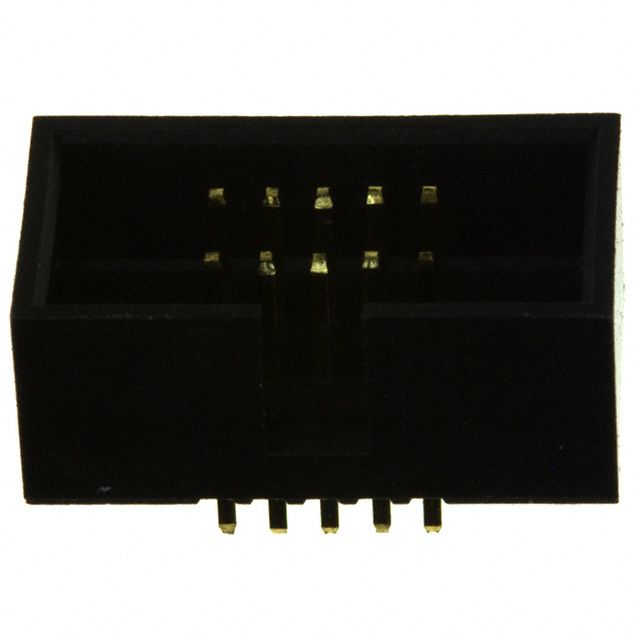

Specifies connector spacing defined as 0.050" (1.27mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Gold. Provides a post-contact finish defined by Gold. Emphasizes the thickness of the mating finish denoted as Flash. Incorporates the length of the post contact specified as 0.118" (3.00mm). Constructed from the contact material known as Brass. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to 1A. Utilizes a fastening type recognized as Push-Pull. Equipped with features categorized as Keying Slot. Available in Black color of insulation for easy identification. An insulation height of 0.228" (5.80mm) provides sufficient electrical clearance. Constructed with Polyamide (PA9T), Nylon 9T insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole for structural stability. Overall number of positions 10 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 2 for setting up matrices or displays. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. The distance 0.050" (1.27mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. The 0.100" (2.54mm) spacing between rows for proper connector alignment to ensure a precise fit. Classification series for the product or component SBH41. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Solder for electrical or mechanical connections.
