Attribute
Description
Manufacturer Part Number
302-S261
Manufacturer
Description

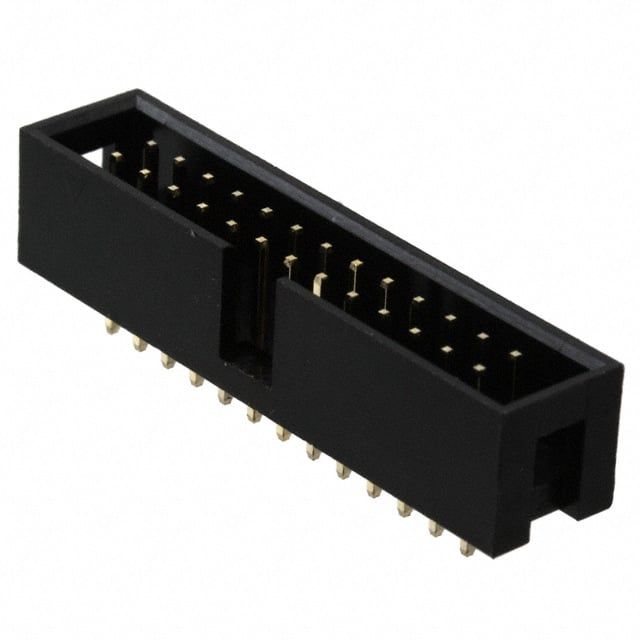

CONN HEADER VERT 26POS 2.54MM
Manufacturer Lead Time
1 week
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10080 | ₹ 16.99000 | ₹ 1,71,259.20 |
| 5040 | ₹ 17.84000 | ₹ 89,913.60 |
| 1080 | ₹ 19.89000 | ₹ 21,481.20 |
| 600 | ₹ 20.74000 | ₹ 12,444.00 |
| 120 | ₹ 23.23000 | ₹ 2,787.60 |
| 10 | ₹ 27.67000 | ₹ 276.70 |
| 1 | ₹ 32.91000 | ₹ 32.91 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 302 | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Interface Connector Category | Header | |
| Pin Interface Category | Male Pin | |
| Mating Connector Pitch | 0.100" (2.54mm) | |
| Switch Position Options | 26 | |
| Grid Row Count | 2 | |
| Mating Row Interval | 0.100" (2.54mm) | |
| Populated Position Count | All | |
| Design Style Variant | Board to Cable/Wire | |
| Connector Shroud Coverage | Shrouded - 4 Wall | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | Solder | |
| Secure Attachment Method | Push-Pull | |
| Engagement Pin Length | - | |
| Tail Pin Extension | 0.122" (3.10mm) | |
| Full Pin Contact Span | - | |
| Barrier Wall Height | 0.358" (9.10mm) | |
| Pin Profile Design | Square | |
| Engaging Pin Coating | Gold | |
| Engagement Layer Thickness | Flash | |
| Post-Contact Pin Layer | Gold | |
| Pin Alloy Composition | Brass | |
| Dielectric Insulation Type | Polyester, Glass Filled | |
| Key Product Highlights | Keying Slot | |
| Ambient Temp Range | -40°C ~ 105°C | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Covering Wire Hue | Black | |
| Ampere Capacity Rating | 3A | |
| Max Voltage Specification | 250V |
