Description

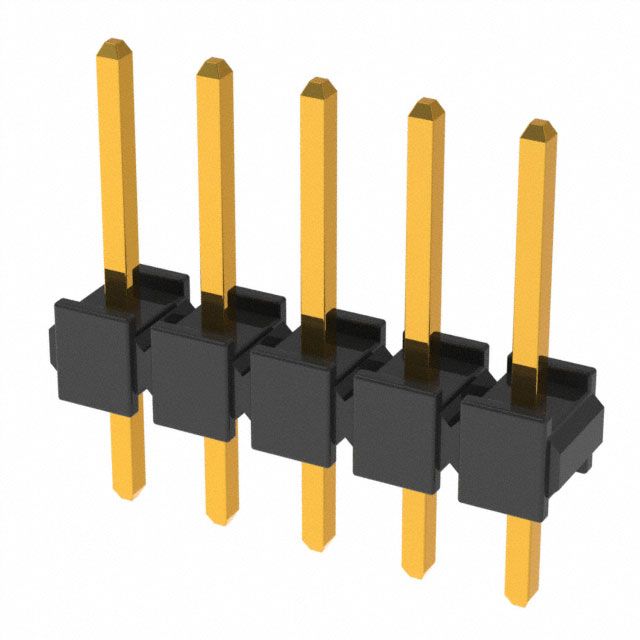

Specifies connector spacing defined as 0.100" (2.54mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Gold. Provides a post-contact finish defined by Gold. Emphasizes the thickness of the mating finish denoted as 5.90µin (0.150µm). Specifies the length of the mating contact noted at 0.236" (6.00mm). Incorporates the length of the post contact specified as 0.118" (3.00mm). Constructed from the contact material known as Brass, Nickel. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to 3A. Utilizes a fastening type recognized as Push-Pull. Available in Black color of insulation for easy identification. An insulation height of 0.098" (2.50mm) provides sufficient electrical clearance. Constructed with Polybutylene Terephthalate (PBT), Glass Filled insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole for structural stability. Overall number of positions 5 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Complete contact span 0.453" (11.50mm) for ensuring connector reliability. Type of housing Bulk for safeguarding or transporting components. The distance 0.100" (2.54mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. Classification series for the product or component XG8. Extent of insulation Unshrouded for protective measures. Style variant Board to Board or Cable for design or arrangement. Termination method Solder for electrical or mechanical connections. Voltage specification 300V for electronic devices.
