Description

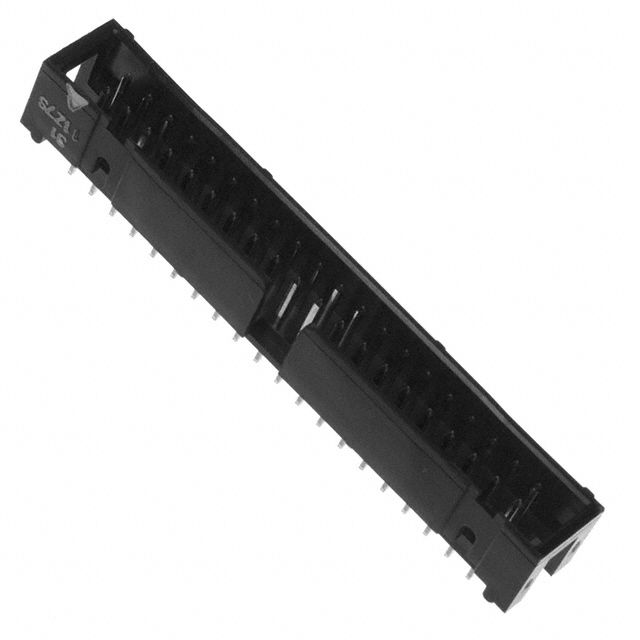

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Specifies connector spacing defined as 0.100" (2.54mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Gold. Provides a post-contact finish defined by Tin. Emphasizes the thickness of the mating finish denoted as 5.90µin (0.150µm). Specifies the length of the mating contact noted at 0.240" (6.10mm). Incorporates the length of the post contact specified as 0.126" (3.20mm). Constructed from the contact material known as Brass, Nickel. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to 3A. Utilizes a fastening type recognized as Push-Pull. Equipped with features categorized as Keying Slot. Available in Black color of insulation for easy identification. An insulation height of 0.335" (8.51mm) provides sufficient electrical clearance. Constructed with Polybutylene Terephthalate (PBT), Glass Filled insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole for structural stability. Overall number of positions 40 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 2 for setting up matrices or displays. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Complete contact span 0.480" (12.19mm) for ensuring connector reliability. Type of housing Tray for safeguarding or transporting components. The distance 0.100" (2.54mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. The 0.100" (2.54mm) spacing between rows for proper connector alignment to ensure a precise fit. Classification series for the product or component XG4. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Board or Cable for design or arrangement. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Termination method Solder for electrical or mechanical connections. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Voltage specification 300V for electronic devices.
