Home Products Board To Board Wire To Board Connectors Male Pin Headers Mill Max Mfg Corp 8021006461001000
Attribute
Description
Manufacturer Part Number
802-10-064-61-001000
Manufacturer
Description

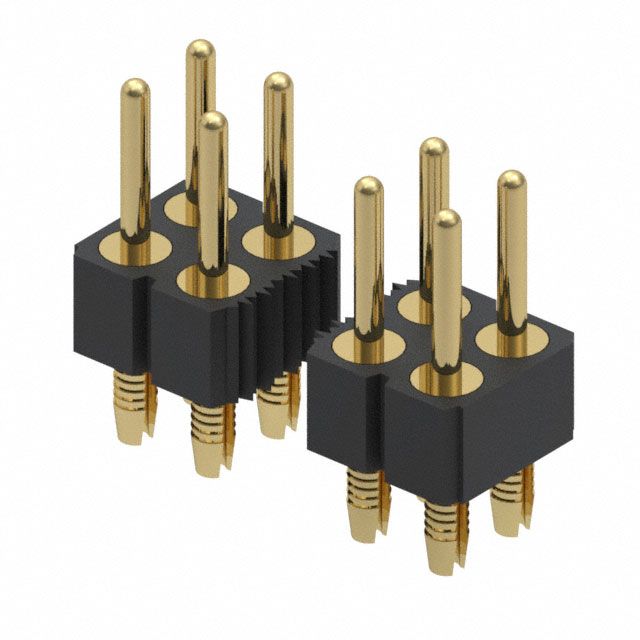

CONN HEADER VERT 64POS 2.54MM
Manufacturer Lead Time
6 weeks
Note :
GST will not be applied to orders shipping outside of India
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 54 | ₹ 1,003.90000 | ₹ 54,210.60 |
Stock:
Distributor: 108
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 252 | ₹ 1,323.43000 | ₹ 3,33,504.36 |
| 504 | ₹ 1,003.92000 | ₹ 5,05,975.68 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 50 | ₹ 2,712.72000 | ₹ 1,35,636.00 |
| 100 | ₹ 1,939.31000 | ₹ 1,93,931.00 |
| 250 | ₹ 1,499.65000 | ₹ 3,74,912.50 |
| 500 | ₹ 1,261.13000 | ₹ 6,30,565.00 |
| 1000 | ₹ 1,088.47000 | ₹ 10,88,470.00 |
| 2500 | ₹ 948.74000 | ₹ 23,71,850.00 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 802 | |
| IC Encapsulation Type | Tube | |
| Availability Status | Active | |
| Interface Connector Category | Header | |
| Pin Interface Category | Male Pin | |
| Mating Connector Pitch | 0.100" (2.54mm) | |
| Switch Position Options | 64 | |
| Grid Row Count | 2 | |
| Mating Row Interval | 0.100" (2.54mm) | |
| Populated Position Count | All | |
| Design Style Variant | Board to Board | |
| Connector Shroud Coverage | Unshrouded | |
| Attachment Mounting Style | Through Hole | |
| Circuit End Method | Press-Fit, Solder | |
| Secure Attachment Method | Push-Pull | |
| Engagement Pin Length | 0.191" (4.85mm) | |
| Tail Pin Extension | 0.104" (2.64mm) | |
| Full Pin Contact Span | 0.405" (10.29mm) | |
| Barrier Wall Height | 0.110" (2.79mm) | |
| Pin Profile Design | Circular | |
| Engaging Pin Coating | Gold | |
| Engagement Layer Thickness | 10.0µin (0.25µm) | |
| Post-Contact Pin Layer | Gold | |
| Pin Alloy Composition | Brass Alloy | |
| Dielectric Insulation Type | Polycyclohexylenedimethylene Terephthalate (PCT) | |
| Key Product Highlights | - | |
| Ambient Temp Range | - | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | - | |
| Covering Wire Hue | Black | |
| Ampere Capacity Rating | - | |
| Max Voltage Specification | - |
