Description

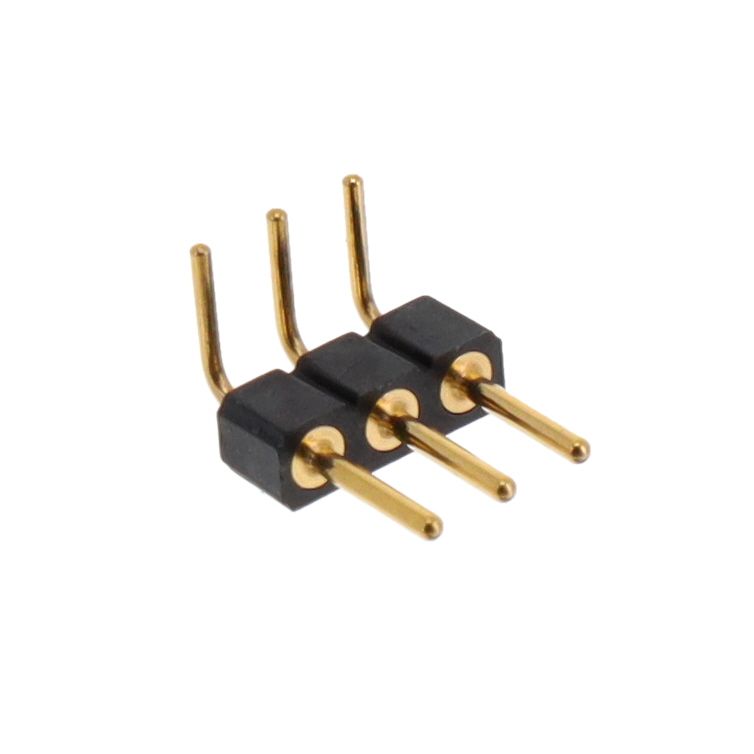

Specifies connector spacing defined as 0.100" (2.54mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Gold. Provides a post-contact finish defined by Gold. Emphasizes the thickness of the mating finish denoted as 10.0µin (0.25µm). Specifies the length of the mating contact noted at 0.195" (4.95mm). Incorporates the length of the post contact specified as 0.126" (3.20mm). Constructed from the contact material known as Brass Alloy. Crafted with a contact shape described as Circular. Makes use of a contact type known as Male Pin. Utilizes a fastening type recognized as Push-Pull. Available in Black color of insulation for easy identification. An insulation height of 0.100" (2.54mm) provides sufficient electrical clearance. Constructed with Polycyclohexylenedimethylene Terephthalate (PCT) insulation material for durability. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 3 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Type of housing Bulk for safeguarding or transporting components. The distance 0.100" (2.54mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. Classification series for the product or component 800. Extent of insulation Unshrouded for protective measures. Style variant Board to Board for design or arrangement. Termination method Solder for electrical or mechanical connections.
