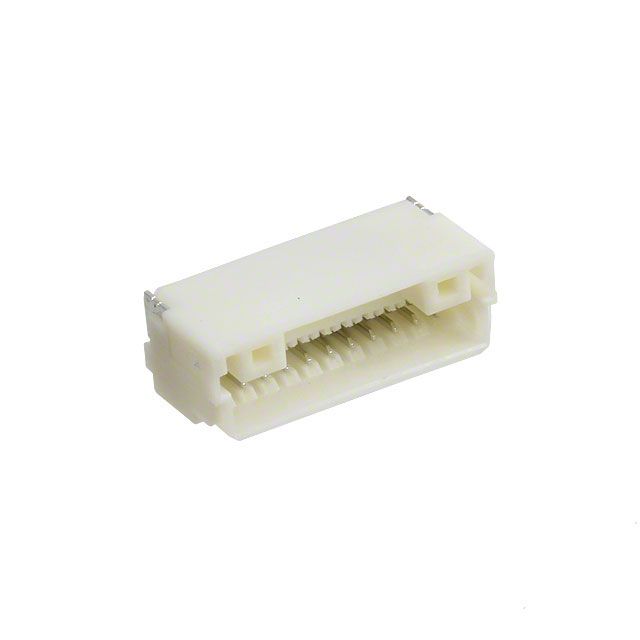

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | NSH | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Active | |
| Interface Connector Category | Header | |
| Pin Interface Category | Male Pin | |
| Mating Connector Pitch | 0.039" (1.00mm) | |
| Switch Position Options | 11 | |
| Grid Row Count | 1 | |
| Mating Row Interval | - | |
| Populated Position Count | All | |
| Design Style Variant | Board to Cable/Wire | |
| Connector Shroud Coverage | Shrouded - 4 Wall | |
| Attachment Mounting Style | Surface Mount | |
| Circuit End Method | Solder | |
| Secure Attachment Method | Latch Holder | |
| Engagement Pin Length | - | |
| Tail Pin Extension | - | |
| Full Pin Contact Span | - | |
| Barrier Wall Height | 0.236" (6.00mm) | |
| Pin Profile Design | - | |
| Engaging Pin Coating | Tin | |
| Engagement Layer Thickness | - | |
| Post-Contact Pin Layer | Tin | |
| Pin Alloy Composition | Copper Alloy | |
| Dielectric Insulation Type | Polyamide (PA), Nylon | |
| Key Product Highlights | Pick and Place, Solder Retention | |
| Ambient Temp Range | -25°C ~ 85°C | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Covering Wire Hue | Natural | |
| Ampere Capacity Rating | 1A | |
| Max Voltage Specification | 50V |
Description
Specifies connector spacing defined as 0.039" (1.00mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Tin. Provides a post-contact finish defined by Tin. Constructed from the contact material known as Copper Alloy. Makes use of a contact type known as Male Pin. Sets the ampere rating to 1A. Utilizes a fastening type recognized as Latch Holder. Equipped with features categorized as Pick and Place, Solder Retention. Available in Natural color of insulation for easy identification. An insulation height of 0.236" (6.00mm) provides sufficient electrical clearance. Constructed with Polyamide (PA), Nylon insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Surface Mount for structural stability. Overall number of positions 11 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Temperature range -25°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. The distance 0.039" (1.00mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. Classification series for the product or component NSH. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Solder for electrical or mechanical connections. Voltage specification 50V for electronic devices.
