Description

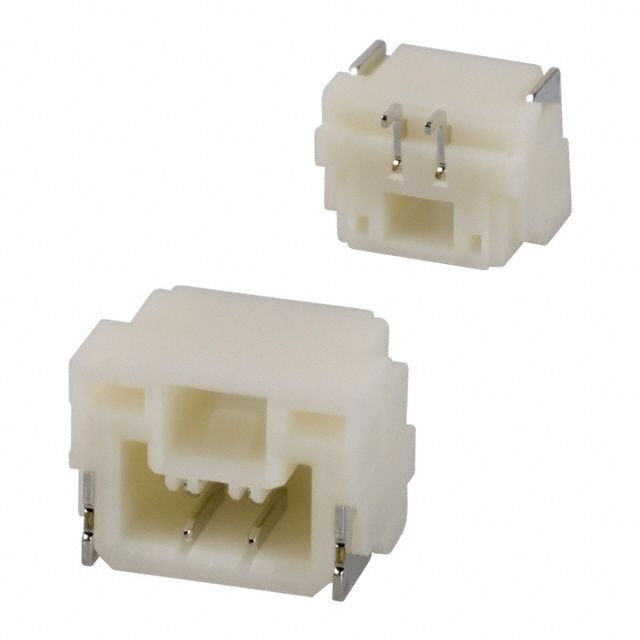

Specifies connector spacing defined as 0.049" (1.25mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Tin. Provides a post-contact finish defined by Tin. Constructed from the contact material known as Phosphor Bronze. Crafted with a contact shape described as Rectangular. Makes use of a contact type known as Outer Shroud Contact. Sets the ampere rating to 1A. Utilizes a fastening type recognized as Locking Ramp. Equipped with features categorized as Solder Retention. Available in Natural color of insulation for easy identification. An insulation height of 0.167" (4.25mm) provides sufficient electrical clearance. Constructed with Polyamide (PA9T), Nylon 9T insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Surface Mount, Right Angle for structural stability. Overall number of positions 2 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Temperature range -25°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. The distance 0.049" (1.25mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. Classification series for the product or component GH. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Solder for electrical or mechanical connections. Voltage specification 50V for electronic devices.
