Description

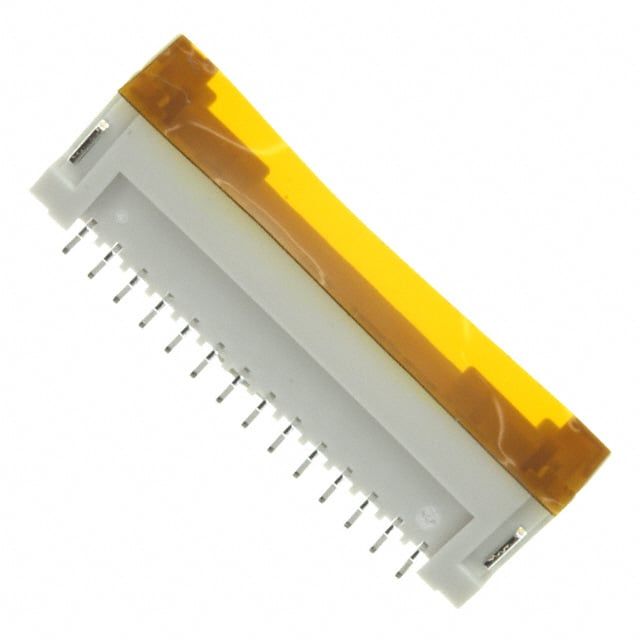

Specifies connector spacing defined as 0.059" (1.50mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Tin. Provides a post-contact finish defined by Tin. Constructed from the contact material known as Copper Alloy. Crafted with a contact shape described as Rectangular. Makes use of a contact type known as Outer Shroud Contact. Sets the ampere rating to 2A. Utilizes a fastening type recognized as Locking Ramp. Equipped with features categorized as Pick and Place, Solder Retention. Available in Natural color of insulation for easy identification. An insulation height of 0.295" (7.50mm) provides sufficient electrical clearance. Constructed with Polyamide (PA), Nylon insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Surface Mount for structural stability. Overall number of positions 14 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Temperature range -25°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. The distance 0.059" (1.50mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. Classification series for the product or component ZE. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Solder for electrical or mechanical connections. Voltage specification 100V for electronic devices.
