Description

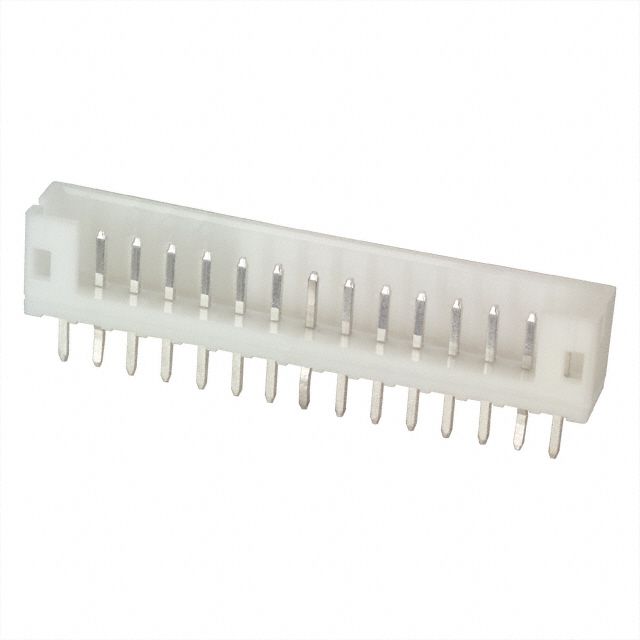

Specifies connector spacing defined as 0.079" (2.00mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Tin. Provides a post-contact finish defined by Tin. Specifies the length of the mating contact noted at 0.130" (3.30mm). Incorporates the length of the post contact specified as 0.134" (3.40mm). Constructed from the contact material known as Brass. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to 2A. Utilizes a fastening type recognized as Detent Lock. Available in Natural color of insulation for easy identification. An insulation height of 0.236" (6.00mm) provides sufficient electrical clearance. Constructed with Polyamide (PA66), Nylon 6/6 insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole for structural stability. Overall number of positions 15 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Temperature range -25°C ~ 85°C for environmental conditions impacting thermal efficiency. Complete contact span 0.333" (8.45mm) for ensuring connector reliability. Type of housing Bulk for safeguarding or transporting components. The distance 0.079" (2.00mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. Classification series for the product or component PH. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Press-Fit, Solder for electrical or mechanical connections. Voltage specification 100V for electronic devices.
