Description

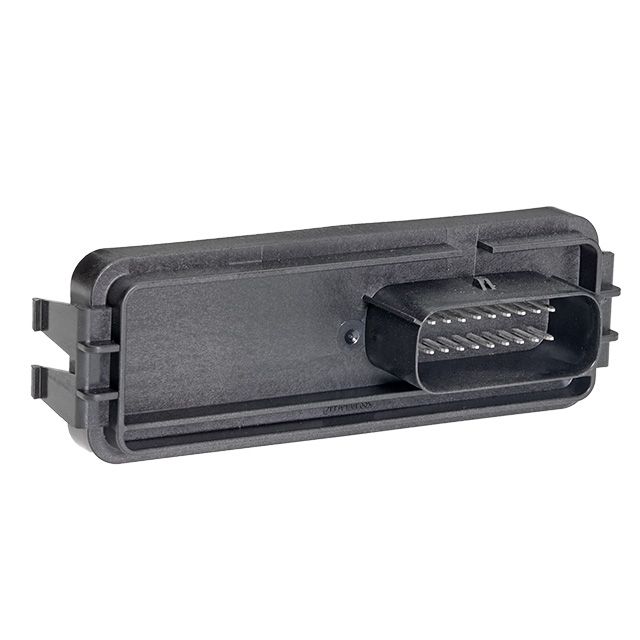

Specifies connector spacing defined as 0.138" (3.50mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Tin. Provides a post-contact finish defined by Tin. Incorporates the length of the post contact specified as 0.130" (3.30mm). Constructed from the contact material known as Brass. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to 10A. Utilizes a fastening type recognized as Latch Lock. Rated with IP IP67, IP69K to safeguard against dust and moisture penetration. Available in Black color of insulation for easy identification. An insulation height of 1.610" (40.90mm) provides sufficient electrical clearance. Constructed with Polymer, Glass Filled insulation material for durability. Mounting configuration Panel Mount, Through Hole, Right Angle for structural stability. Overall number of positions 20 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 2 for setting up matrices or displays. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. The distance 0.138" (3.50mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. Classification series for the product or component ModICE® MX. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Solder for electrical or mechanical connections.
