Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 16000 | ₹ 6.35000 | ₹ 1,01,600.00 |
| 12000 | ₹ 6.48000 | ₹ 77,760.00 |
| 8000 | ₹ 6.94000 | ₹ 55,520.00 |
| 4000 | ₹ 9.26000 | ₹ 37,040.00 |
Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 16000 | ₹ 7.32000 | ₹ 1,17,120.00 |

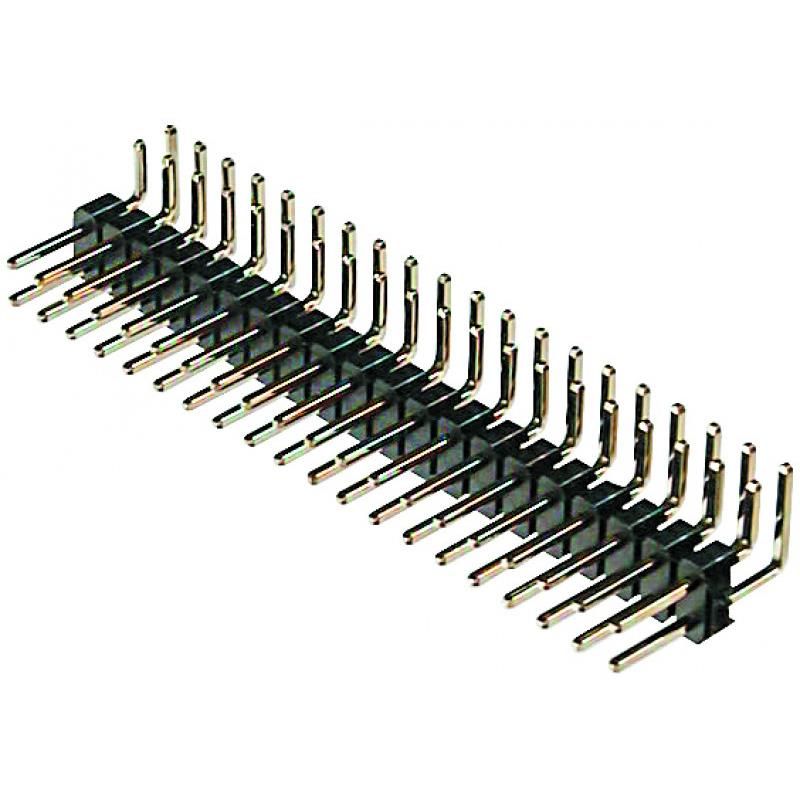

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | AWL254 | |
| IC Encapsulation Type | Bag | |
| Availability Status | Active | |
| Interface Connector Category | Header, Cuttable | |
| Pin Interface Category | Male Pin | |
| Mating Connector Pitch | 0.100" (2.54mm) | |
| Switch Position Options | 4 | |
| Grid Row Count | 2 | |
| Mating Row Interval | 0.100" (2.54mm) | |
| Populated Position Count | All | |
| Design Style Variant | Board to Board | |
| Connector Shroud Coverage | Unshrouded | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Circuit End Method | Solder | |
| Secure Attachment Method | Push-Pull | |
| Engagement Pin Length | 0.236" (6.00mm) | |
| Tail Pin Extension | 0.118" (3.00mm) | |
| Full Pin Contact Span | - | |
| Barrier Wall Height | 0.197" (5.00mm) | |
| Pin Profile Design | Square | |
| Engaging Pin Coating | Tin | |
| Engagement Layer Thickness | - | |
| Post-Contact Pin Layer | - | |
| Pin Alloy Composition | Brass | |
| Dielectric Insulation Type | Polybutylene Terephthalate (PBT), Glass Filled | |
| Key Product Highlights | - | |
| Ambient Temp Range | -40°C ~ 105°C | |
| Dust Water Resistance Rating | - | |
| Fire Resistance Classification | UL94 V-0 | |
| Covering Wire Hue | Black | |
| Ampere Capacity Rating | 3A per Contact | |
| Max Voltage Specification | - |
Description
Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Specifies connector spacing defined as 0.100" (2.54mm) for suitable PCB layout. Features a connector type acknowledged as Header, Cuttable. Offers mating contact finish rated at Tin. Specifies the length of the mating contact noted at 0.236" (6.00mm). Incorporates the length of the post contact specified as 0.118" (3.00mm). Constructed from the contact material known as Brass. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to 3A per Contact. Utilizes a fastening type recognized as Push-Pull. Available in Black color of insulation for easy identification. An insulation height of 0.197" (5.00mm) provides sufficient electrical clearance. Constructed with Polybutylene Terephthalate (PBT), Glass Filled insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 4 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 2 for setting up matrices or displays. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Bag for safeguarding or transporting components. The distance 0.100" (2.54mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. The 0.100" (2.54mm) spacing between rows for proper connector alignment to ensure a precise fit. Classification series for the product or component AWL254. Extent of insulation Unshrouded for protective measures. Style variant Board to Board for design or arrangement. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Termination method Solder for electrical or mechanical connections. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
