Description

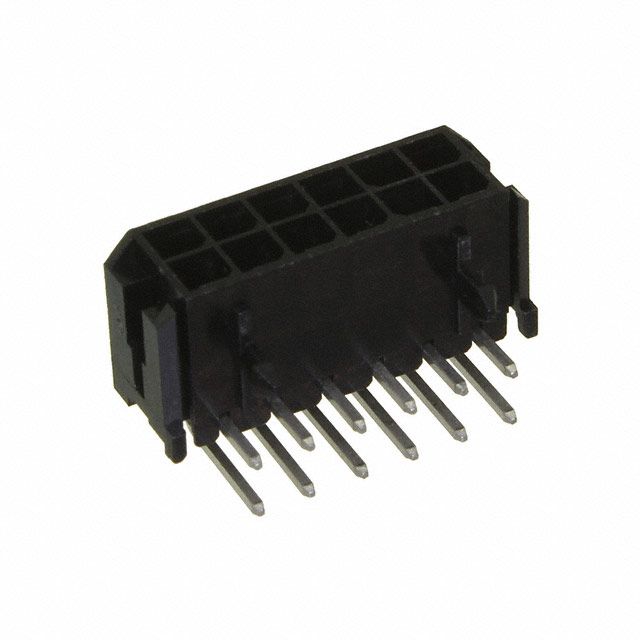

Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Specifies connector spacing defined as 0.118" (3.00mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Tin. Provides a post-contact finish defined by Tin. Emphasizes the thickness of the mating finish denoted as 60.0µin (1.52µm). Incorporates the length of the post contact specified as 0.126" (3.20mm). Constructed from the contact material known as Copper Alloy. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to Varies by Wire Gauge. Utilizes a fastening type recognized as Locking Ramp. Equipped with features categorized as Board Lock, Glow Wire Compliant. Available in Black color of insulation for easy identification. An insulation height of 0.343" (8.71mm) provides sufficient electrical clearance. Constructed with Polyamide (PA9T), Nylon 9T insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 12 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 2 for setting up matrices or displays. Temperature range -40°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tray for safeguarding or transporting components. The distance 0.118" (3.00mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. The 0.118" (3.00mm) spacing between rows for proper connector alignment to ensure a precise fit. Classification series for the product or component Minitek® Pwr 3.0 High Current. Extent of insulation Shrouded - 4 Wall for protective measures. Style variant Board to Cable/Wire for design or arrangement. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Termination method Solder for electrical or mechanical connections. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications. Voltage specification 250V for electronic devices.
