Description

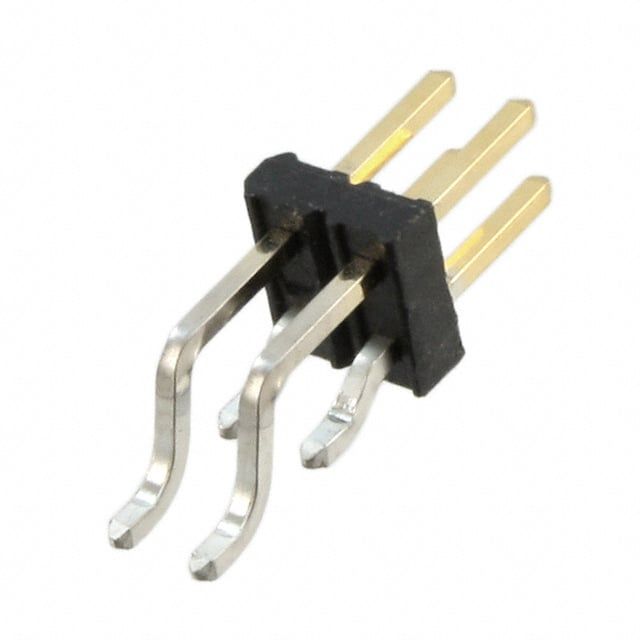

Specifies connector spacing defined as 0.079" (2.00mm) for suitable PCB layout. Features a connector type acknowledged as Header. Offers mating contact finish rated at Gold or Gold, GXT™. Provides a post-contact finish defined by Tin. Emphasizes the thickness of the mating finish denoted as 30.0µin (0.76µm). Specifies the length of the mating contact noted at 0.157" (4.00mm). Constructed from the contact material known as Copper Alloy. Crafted with a contact shape described as Square. Makes use of a contact type known as Male Pin. Sets the ampere rating to 3A. Utilizes a fastening type recognized as Push-Pull. Available in Black color of insulation for easy identification. An insulation height of 0.157" (4.00mm) provides sufficient electrical clearance. Constructed with Thermoplastic, Glass Filled insulation material for durability. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Surface Mount, Right Angle for structural stability. Overall number of positions 4 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 2 for setting up matrices or displays. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. The distance 0.079" (2.00mm) to achieve correct alignment with the corresponding connector. Product status Active concerning availability and lifecycle. The 0.079" (2.00mm) spacing between rows for proper connector alignment to ensure a precise fit. Classification series for the product or component Minitek® 2.00mm. Extent of insulation Unshrouded for protective measures. Style variant Board to Cable/Wire for design or arrangement. Termination method Solder for electrical or mechanical connections. Voltage specification 200V for electronic devices.
