Description

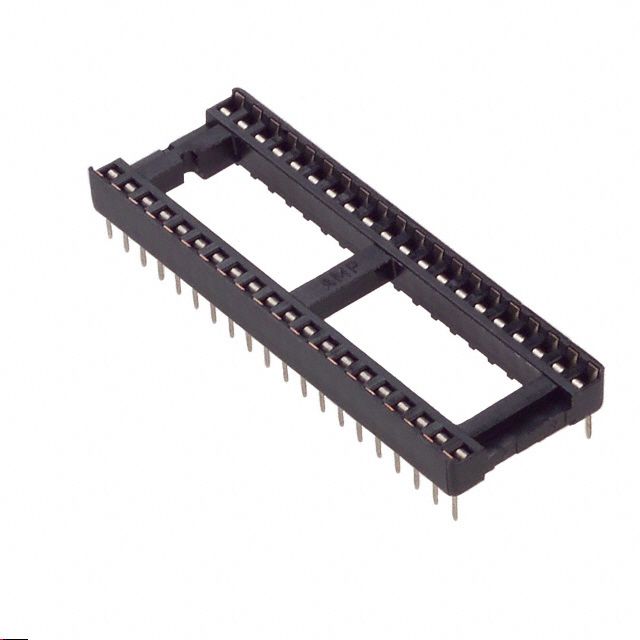

Specifies connector spacing defined as 0.100" (2.54mm) for suitable PCB layout. Offers mating contact finish rated at Gold. Provides a post-contact finish defined by Gold. Emphasizes the thickness of the mating finish denoted as 30.0µin (0.76µm). Constructed with the thickness of the post finish evaluated at 30.0µin (0.76µm). Utilizes the mating contact material designated as Beryllium Copper. Features the post contact material recognized as Beryllium Copper. Equipped with features categorized as Open Frame. Constructed from Thermoplastic, Glass Filled material to guarantee strength and reliability. Mounting configuration Through Hole for structural stability. Pins or positions on grid 40 (2 x 20) for connector layout. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. The distance 0.100" (2.54mm) to achieve correct alignment with the corresponding connector. The space between posts 0.100" (2.54mm) to ensure compatibility with installation or PCB. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component Diplomate DL. Termination method Solder for electrical or mechanical connections. Type classification DIP, 0.6" (15.24mm) Row Spacing for specifications.
