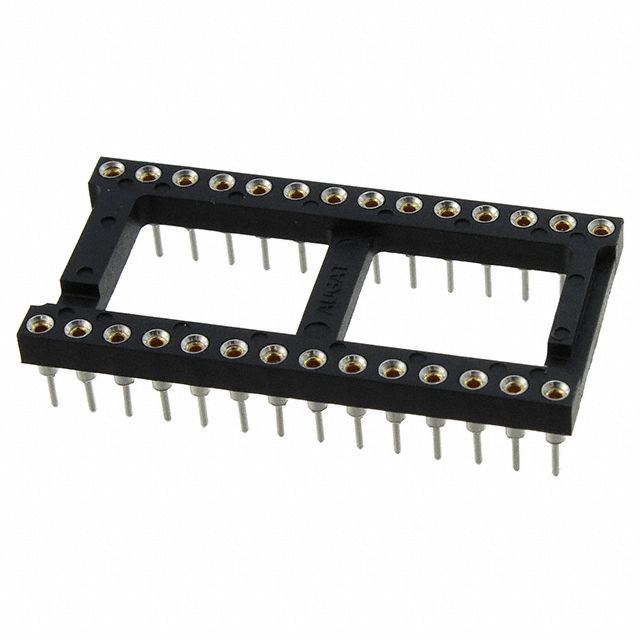

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | 800 | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Device Type Classification | DIP, 0.6" (15.24mm) Row Spacing | |
| Grid Pin Array Count | 28 (2 x 14) | |
| Mating Connector Pitch | 0.100" (2.54mm) | |
| Engaging Pin Coating | Gold | |
| Engagement Layer Thickness | 5.00µin (0.127µm) | |
| Connecting Pin Material | Copper Alloy | |
| Attachment Mounting Style | Through Hole | |
| Key Product Highlights | Open Frame | |
| Circuit End Method | Solder | |
| Post Pin Interval | 0.100" (2.54mm) | |
| Post-Contact Pin Layer | - | |
| Post Layer Depth | - | |
| Solder Tail Material | - | |
| Casing Build Material | Polyester | |
| Ambient Temp Range | -55°C ~ 105°C |
Description
Specifies connector spacing defined as 0.100" (2.54mm) for suitable PCB layout. Offers mating contact finish rated at Gold. Emphasizes the thickness of the mating finish denoted as 5.00µin (0.127µm). Utilizes the mating contact material designated as Copper Alloy. Equipped with features categorized as Open Frame. Constructed from Polyester material to guarantee strength and reliability. Mounting configuration Through Hole for structural stability. Pins or positions on grid 28 (2 x 14) for connector layout. Temperature range -55°C ~ 105°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. The distance 0.100" (2.54mm) to achieve correct alignment with the corresponding connector. The space between posts 0.100" (2.54mm) to ensure compatibility with installation or PCB. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component 800. Termination method Solder for electrical or mechanical connections. Type classification DIP, 0.6" (15.24mm) Row Spacing for specifications.
