Description

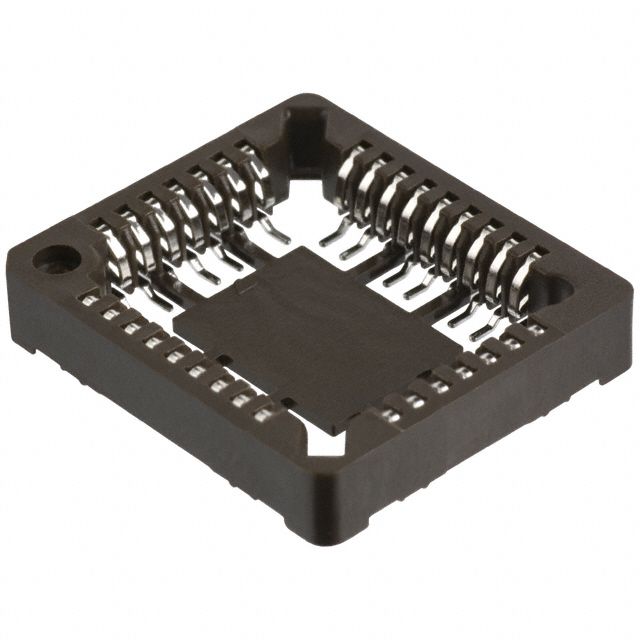

Specifies connector spacing defined as 0.050" (1.27mm) for suitable PCB layout. Offers mating contact finish rated at Tin. Provides a post-contact finish defined by Tin. Emphasizes the thickness of the mating finish denoted as 150.0µin (3.81µm). Constructed with the thickness of the post finish evaluated at 150.0µin (3.81µm). Utilizes the mating contact material designated as Copper Alloy. Features the post contact material recognized as Copper Alloy. Equipped with features categorized as Closed Frame. Constructed from Polyphenylene Sulfide (PPS) material to guarantee strength and reliability. Mounting configuration Surface Mount for structural stability. Pins or positions on grid 32 (2 x 7, 2 x 9) for connector layout. Temperature range -55°C ~ 125°C for environmental conditions impacting thermal efficiency. Type of housing Tube for safeguarding or transporting components. The distance 0.050" (1.27mm) to achieve correct alignment with the corresponding connector. The space between posts 0.100" (2.54mm) to ensure compatibility with installation or PCB. Product status Active concerning availability and lifecycle. Classification series for the product or component 540. Termination method Solder for electrical or mechanical connections. Type classification PLCC for specifications.
