Stock:
Distributor: 110
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10500 | ₹ 56.07000 | ₹ 5,88,735.00 |
| 7875 | ₹ 57.14000 | ₹ 4,49,977.50 |
| 5250 | ₹ 83.13000 | ₹ 4,36,432.50 |
| 2625 | ₹ 157.53000 | ₹ 4,13,516.25 |
Stock:
Distributor: 115
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 10500 | ₹ 56.07000 | ₹ 5,88,735.00 |
| 7875 | ₹ 57.14000 | ₹ 4,49,977.50 |
| 5250 | ₹ 83.13000 | ₹ 4,36,432.50 |
| 2625 | ₹ 157.53000 | ₹ 4,13,516.25 |

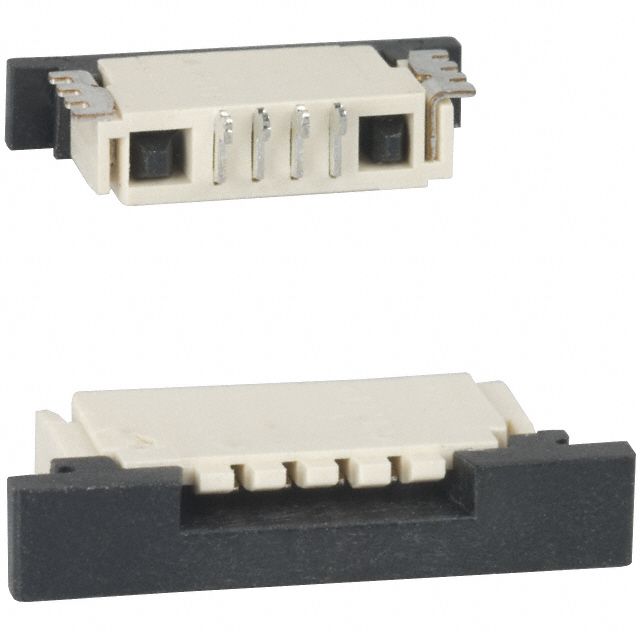

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Flat Flexible Cable Style | FPC | |
| Attachment Mounting Style | Surface Mount, Right Angle | |
| Pin Interface Style | Contacts, Top | |
| Switch Position Options | 4 | |
| Component Spacing Distance | 0.039" (1.00mm) | |
| Circuit End Method | Solder | |
| Flat Flexible Cable Depth | 0.30mm | |
| PCB Clearance Height | 0.101" (2.56mm) | |
| Retention Lock Mechanism | Slide Lock | |
| Wire Termination Style | Straight | |
| Pin Alloy Composition | Phosphor Bronze | |
| Pin Surface Treatment | Tin-Lead | |
| Casing Build Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Activator Construction Material | - | |
| Key Product Highlights | Solder Retention, Zero Insertion Force (ZIF) | |
| Max Voltage Specification | 200V | |
| Ambient Temp Range | -40°C ~ 85°C | |
| Fire Resistance Classification | UL94 V-0 |
Description
Designed with a cable end configuration known as Straight. Showcases connector/contact type specified as Contacts, Top. Includes contact finish plated at Tin-Lead to improve conductivity. Constructed from the contact material known as Phosphor Bronze. Shows FFC/FCB thickness noted at 0.30mm. Equipped with features categorized as Solder Retention, Zero Insertion Force (ZIF). Employs a flat flexible configuration known as FPC. Maintains a height of 0.101" (2.56mm) above the board to accommodate assembly and clearance requirements. Constructed from Liquid Crystal Polymer (LCP), Glass Filled material to guarantee strength and reliability. Mechanism Slide Lock for locking to enhance safety. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Surface Mount, Right Angle for structural stability. Overall number of positions 4 for switches or mechanical components. Temperature range -40°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Bulk for safeguarding or transporting components. Distance 0.039" (1.00mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Termination method Solder for electrical or mechanical connections. Voltage specification 200V for electronic devices.
