Stock:
Distributor: 113
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 6000 | ₹ 90.96000 | ₹ 5,45,760.00 |
Stock:
Distributor: 114
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 6000 | ₹ 93.45000 | ₹ 5,60,700.00 |
| 30000 | ₹ 86.26000 | ₹ 25,87,800.00 |
| 60000 | ₹ 80.10000 | ₹ 48,06,000.00 |
| 150000 | ₹ 74.76000 | ₹ 1,12,14,000.00 |
| 300000 | ₹ 70.09000 | ₹ 2,10,27,000.00 |
Stock:
Distributor: 121
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ₹ 140.29000 | ₹ 140.29 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

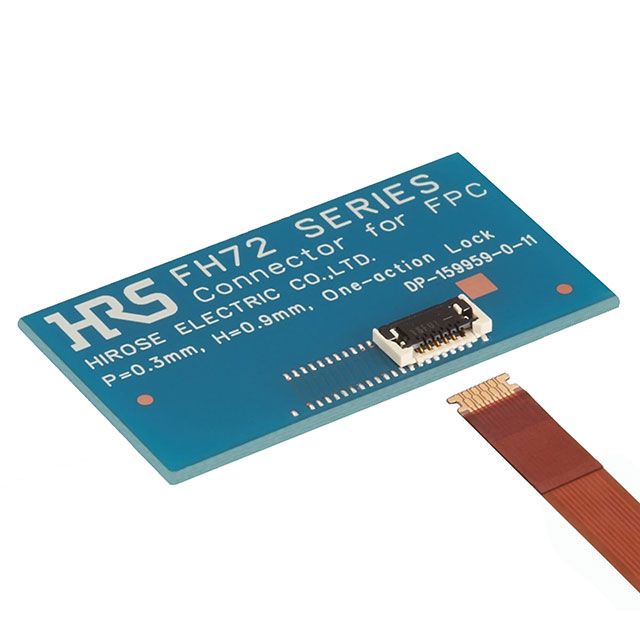

| Product Series Line | FH72 | |
| IC Encapsulation Type | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® | |
| Availability Status | Active | |
| Flat Flexible Cable Style | FPC | |
| Attachment Mounting Style | Surface Mount, Right Angle | |
| Pin Interface Style | Contacts, Top | |
| Switch Position Options | 21 | |
| Component Spacing Distance | 0.012" (0.30mm) | |
| Circuit End Method | Solder | |
| Flat Flexible Cable Depth | 0.20mm | |
| PCB Clearance Height | 0.035" (0.88mm) | |
| Retention Lock Mechanism | Flip Lock | |
| Wire Termination Style | Notched | |
| Pin Alloy Composition | Copper Alloy | |
| Pin Surface Treatment | Gold | |
| Casing Build Material | Liquid Crystal Polymer (LCP) | |
| Activator Construction Material | Polyamide (PA), Nylon | |
| Key Product Highlights | - | |
| Max Voltage Specification | 30V | |
| Ambient Temp Range | -55°C ~ 85°C | |
| Fire Resistance Classification | UL94 V-0 |
Description
Made from Polyamide (PA), Nylon material to ensure durability. Designed with a cable end configuration known as Notched. Showcases connector/contact type specified as Contacts, Top. Includes contact finish plated at Gold to improve conductivity. Constructed from the contact material known as Copper Alloy. Shows FFC/FCB thickness noted at 0.20mm. Employs a flat flexible configuration known as FPC. Maintains a height of 0.035" (0.88mm) above the board to accommodate assembly and clearance requirements. Constructed from Liquid Crystal Polymer (LCP) material to guarantee strength and reliability. Mechanism Flip Lock for locking to enhance safety. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Surface Mount, Right Angle for structural stability. Overall number of positions 21 for switches or mechanical components. Temperature range -55°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR)Cut Tape (CT)Digi-Reel® for safeguarding or transporting components. Distance 0.012" (0.30mm) for arranging components or aligning connectors. Product status Active concerning availability and lifecycle. Classification series for the product or component FH72. Termination method Solder for electrical or mechanical connections. Voltage specification 30V for electronic devices.
