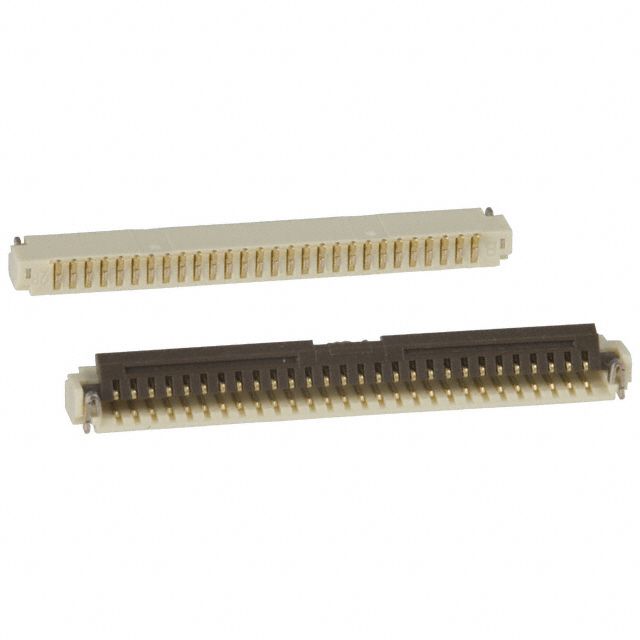

Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | FH33 | |
| IC Encapsulation Type | Tape & Reel (TR) | |
| Availability Status | Obsolete | |
| Flat Flexible Cable Style | FFC, FPC | |
| Attachment Mounting Style | Surface Mount, Right Angle | |
| Pin Interface Style | Contacts, Bottom | |
| Switch Position Options | 28 | |
| Component Spacing Distance | 0.020" (0.50mm) | |
| Circuit End Method | Solder | |
| Flat Flexible Cable Depth | 0.30mm | |
| PCB Clearance Height | 0.047" (1.20mm) | |
| Retention Lock Mechanism | Flip Lock | |
| Wire Termination Style | Tapered | |
| Pin Alloy Composition | Phosphor Bronze | |
| Pin Surface Treatment | Gold | |
| Casing Build Material | Polyamide (PA), Nylon | |
| Activator Construction Material | Polyamide (PA), Nylon | |
| Key Product Highlights | Zero Insertion Force (ZIF) | |
| Max Voltage Specification | 50V | |
| Ambient Temp Range | -55°C ~ 85°C | |
| Fire Resistance Classification | UL94 V-0 |
Description
Made from Polyamide (PA), Nylon material to ensure durability. Designed with a cable end configuration known as Tapered. Showcases connector/contact type specified as Contacts, Bottom. Includes contact finish plated at Gold to improve conductivity. Constructed from the contact material known as Phosphor Bronze. Shows FFC/FCB thickness noted at 0.30mm. Equipped with features categorized as Zero Insertion Force (ZIF). Employs a flat flexible configuration known as FFC, FPC. Maintains a height of 0.047" (1.20mm) above the board to accommodate assembly and clearance requirements. Constructed from Polyamide (PA), Nylon material to guarantee strength and reliability. Mechanism Flip Lock for locking to enhance safety. Classification UL94 V-0 for adherence to fire safety regulations. Mounting configuration Surface Mount, Right Angle for structural stability. Overall number of positions 28 for switches or mechanical components. Temperature range -55°C ~ 85°C for environmental conditions impacting thermal efficiency. Type of housing Tape & Reel (TR) for safeguarding or transporting components. Distance 0.020" (0.50mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component FH33. Termination method Solder for electrical or mechanical connections. Voltage specification 50V for electronic devices.
