Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | MULTI-BEAM XL | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Plug Application Role | - | |
| Interface Connector Category | Header, Male Pins and Blades | |
| Plug Design Type | Multi-Beam | |
| Switch Position Options | 42 | |
| Populated Position Count | All | |
| Component Spacing Distance | 0.100" (2.54mm) | |
| Grid Row Count | 4 | |
| Grid Column Count | - | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Circuit End Method | Solder | |
| Standard Pin Arrangement | 28 Signal, 14 Power | |
| Key Product Highlights | Board Lock, Mating Guide | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 30.0µin (0.76µm) | |
| Visual Hue | Black |

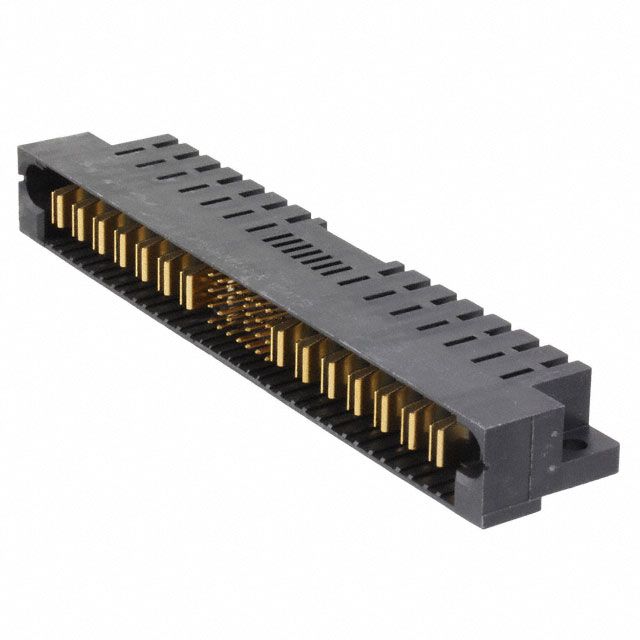

Description
Offered in a shade referred to as Black to enhance the system's aesthetics. Utilizes a connector style known as Multi-Beam. Features a connector type acknowledged as Header, Male Pins and Blades. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 30.0µin (0.76µm). Provides a standard contact configuration characterized as 28 Signal, 14 Power. Equipped with features categorized as Board Lock, Mating Guide. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 42 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 4 for setting up matrices or displays. Type of housing Tray for safeguarding or transporting components. Distance 0.100" (2.54mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component MULTI-BEAM XL. Termination method Solder for electrical or mechanical connections.
