Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | UPM (Universal Power Modules) | |
| IC Encapsulation Type | Tube | |
| Availability Status | Obsolete | |
| Plug Application Role | Backplane | |
| Interface Connector Category | Header, Male Blades | |
| Plug Design Type | Blade Power | |
| Switch Position Options | 3 | |
| Populated Position Count | All | |
| Component Spacing Distance | - | |
| Grid Row Count | 1 | |
| Grid Column Count | - | |
| Attachment Mounting Style | Board Edge, Through Hole, Right Angle | |
| Circuit End Method | Press-Fit | |
| Standard Pin Arrangement | 3 Power | |
| Key Product Highlights | Board Guide | |
| Pin Surface Treatment | Gold or Gold-Palladium | |
| Pin Coating Depth | - | |
| Visual Hue | Gray |

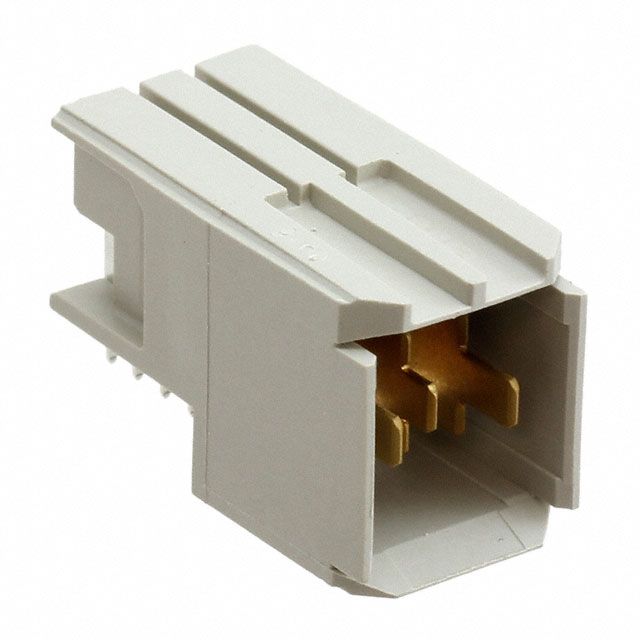

Description
Offered in a shade referred to as Gray to enhance the system's aesthetics. Utilizes a connector style known as Blade Power. Features a connector type acknowledged as Header, Male Blades. Intended for connector roles classified as Backplane. Includes contact finish plated at Gold or Gold-Palladium to improve conductivity. Provides a standard contact configuration characterized as 3 Power. Equipped with features categorized as Board Guide. Mounting configuration Board Edge, Through Hole, Right Angle for structural stability. Overall number of positions 3 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 1 for setting up matrices or displays. Type of housing Tube for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component UPM (Universal Power Modules). Termination method Press-Fit for electrical or mechanical connections.
