Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | MINIPAK HDL | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Plug Application Role | - | |
| Interface Connector Category | Header, Male Pins and Blades | |
| Plug Design Type | - | |
| Switch Position Options | 35 | |
| Populated Position Count | All | |
| Component Spacing Distance | - | |
| Grid Row Count | - | |
| Grid Column Count | - | |
| Attachment Mounting Style | Board Edge, Through Hole, Right Angle | |
| Circuit End Method | Press-Fit | |
| Standard Pin Arrangement | 25 Signal, 10 Power | |
| Key Product Highlights | - | |
| Pin Surface Treatment | Silver | |
| Pin Coating Depth | 30.0µin (0.76µm) | |
| Visual Hue | Black |

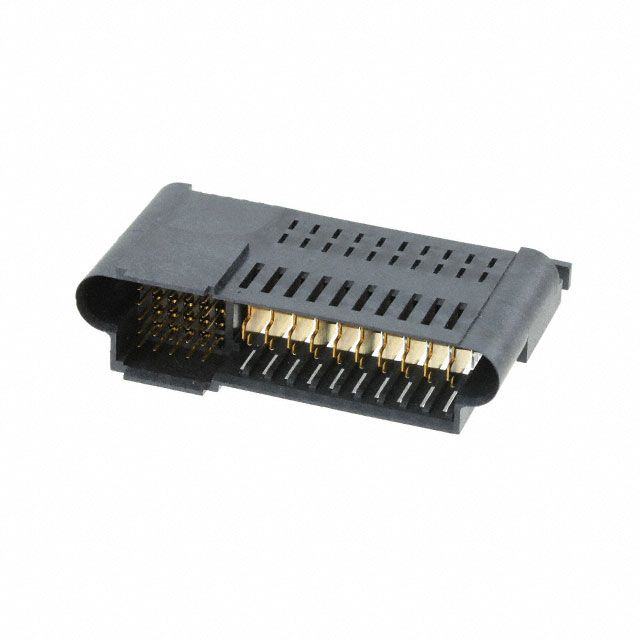

Description
Offered in a shade referred to as Black to enhance the system's aesthetics. Features a connector type acknowledged as Header, Male Pins and Blades. Includes contact finish plated at Silver to improve conductivity. Represents the thickness of the contact finish recorded at 30.0µin (0.76µm). Provides a standard contact configuration characterized as 25 Signal, 10 Power. Mounting configuration Board Edge, Through Hole, Right Angle for structural stability. Overall number of positions 35 for switches or mechanical components. Occupied positions All for mechanical assembly. Type of housing Tray for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component MINIPAK HDL. Termination method Press-Fit for electrical or mechanical connections.
