Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | ATCA / mTCA | |
| IC Encapsulation Type | Tray | |
| Availability Status | Obsolete | |
| Plug Application Role | Backplane-to-Daughtercard | |
| Interface Connector Category | Plug, Piggyback | |
| Plug Design Type | MCH | |
| Switch Position Options | 170 | |
| Populated Position Count | All | |
| Component Spacing Distance | 0.029" (0.75mm) | |
| Grid Row Count | - | |
| Grid Column Count | - | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Circuit End Method | Press-Fit | |
| Standard Pin Arrangement | - | |
| Key Product Highlights | Board Guide | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | - | |
| Visual Hue | - |

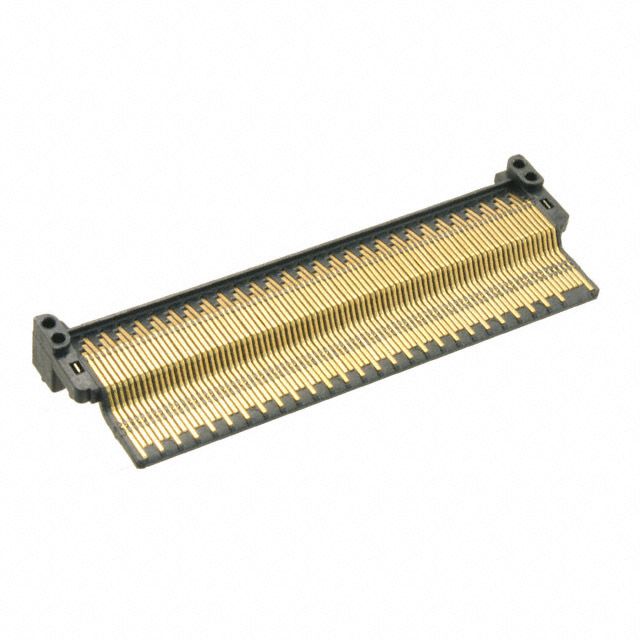

Description
Utilizes a connector style known as MCH. Features a connector type acknowledged as Plug, Piggyback. Intended for connector roles classified as Backplane-to-Daughtercard. Includes contact finish plated at Gold to improve conductivity. Equipped with features categorized as Board Guide. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 170 for switches or mechanical components. Occupied positions All for mechanical assembly. Type of housing Tray for safeguarding or transporting components. Distance 0.029" (0.75mm) for arranging components or aligning connectors. Product status Obsolete concerning availability and lifecycle. Classification series for the product or component ATCA / mTCA. Termination method Press-Fit for electrical or mechanical connections.
