Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | - | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Plug Application Role | Front Board | |
| Interface Connector Category | Plug, Male Pins | |
| Plug Design Type | AdvancedTCA® | |
| Switch Position Options | 34 | |
| Populated Position Count | 30 | |
| Component Spacing Distance | - | |
| Grid Row Count | - | |
| Grid Column Count | - | |
| Attachment Mounting Style | Through Hole, Right Angle | |
| Circuit End Method | Press-Fit | |
| Standard Pin Arrangement | 26 Signal, 8 Power | |
| Key Product Highlights | Mating Guide | |
| Pin Surface Treatment | Gold | |
| Pin Coating Depth | 31.5µin (0.80µm) | |
| Visual Hue | Gray |

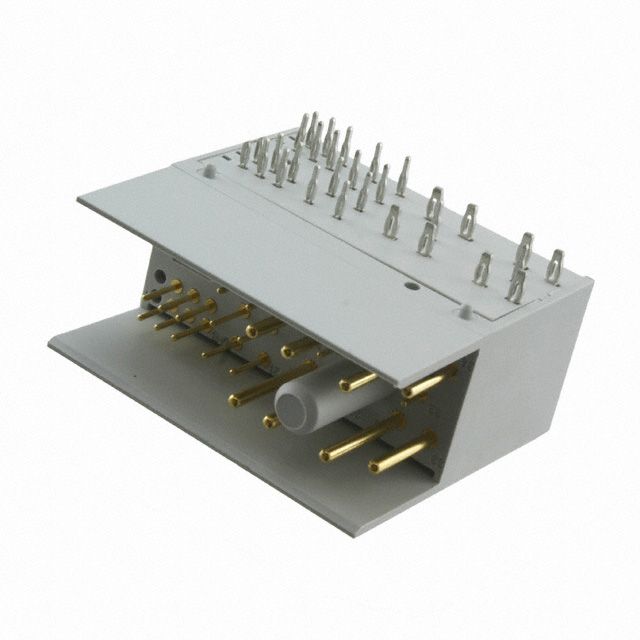

Description
Offered in a shade referred to as Gray to enhance the system's aesthetics. Utilizes a connector style known as AdvancedTCA®. Features a connector type acknowledged as Plug, Male Pins. Intended for connector roles classified as Front Board. Includes contact finish plated at Gold to improve conductivity. Represents the thickness of the contact finish recorded at 31.5µin (0.80µm). Provides a standard contact configuration characterized as 26 Signal, 8 Power. Equipped with features categorized as Mating Guide. Mounting configuration Through Hole, Right Angle for structural stability. Overall number of positions 34 for switches or mechanical components. Occupied positions 30 for mechanical assembly. Type of housing Tray for safeguarding or transporting components. Product status Active concerning availability and lifecycle. Termination method Press-Fit for electrical or mechanical connections.
