Stock:
Distributor: 117
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 2508 | ₹ 322.73000 | ₹ 8,09,406.84 |
| 1012 | ₹ 344.04000 | ₹ 3,48,168.48 |
| 528 | ₹ 360.19000 | ₹ 1,90,180.32 |
| 264 | ₹ 378.23000 | ₹ 99,852.72 |
| 132 | ₹ 397.19000 | ₹ 52,429.08 |
| 88 | ₹ 408.72000 | ₹ 35,967.36 |
| 44 | ₹ 429.21000 | ₹ 18,885.24 |
| 10 | ₹ 476.56000 | ₹ 4,765.60 |
| 1 | ₹ 560.45000 | ₹ 560.45 |
Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |
| Product Series Line | PwrBlade® | |
| IC Encapsulation Type | Tray | |
| Availability Status | Active | |
| Plug Application Role | - | |
| Interface Connector Category | Header, Male Pins and Blades | |
| Plug Design Type | Blade Power | |
| Switch Position Options | 26 | |
| Populated Position Count | All | |
| Component Spacing Distance | 0.100" (2.54mm) | |
| Grid Row Count | 4 | |
| Grid Column Count | - | |
| Attachment Mounting Style | Board Edge, Through Hole, Right Angle | |
| Circuit End Method | Solder | |
| Standard Pin Arrangement | 24 Signal, 2 Power | |
| Key Product Highlights | Mating Guide | |
| Pin Surface Treatment | Gold or Gold, GXT™ | |
| Pin Coating Depth | 30.0µin (0.76µm) | |
| Visual Hue | Black |
Description

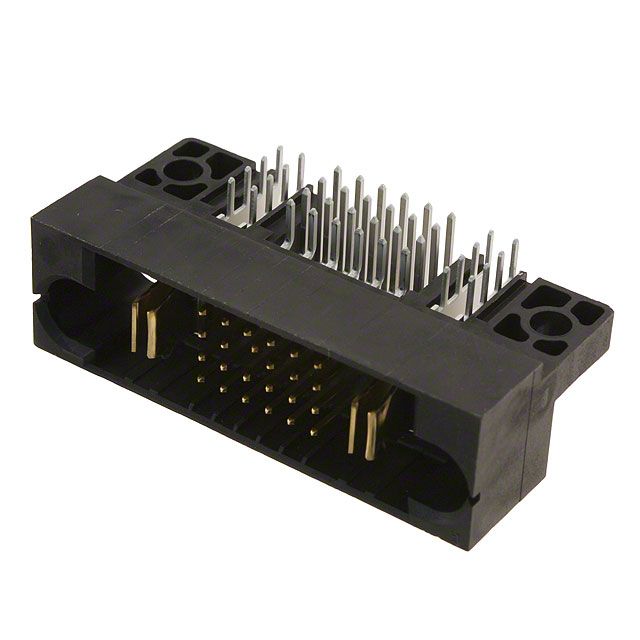

Offered in a shade referred to as Black to enhance the system's aesthetics. Utilizes a connector style known as Blade Power. Features a connector type acknowledged as Header, Male Pins and Blades. Includes contact finish plated at Gold or Gold, GXT™ to improve conductivity. Represents the thickness of the contact finish recorded at 30.0µin (0.76µm). Provides a standard contact configuration characterized as 24 Signal, 2 Power. Equipped with features categorized as Mating Guide. Mounting configuration Board Edge, Through Hole, Right Angle for structural stability. Overall number of positions 26 for switches or mechanical components. Occupied positions All for mechanical assembly. Overall rows 4 for setting up matrices or displays. Type of housing Tray for safeguarding or transporting components. Distance 0.100" (2.54mm) for arranging components or aligning connectors. Product status Active concerning availability and lifecycle. Classification series for the product or component PwrBlade®. Termination method Solder for electrical or mechanical connections.
